Description

● 0.7X-4.5X Zoom Body with detents
● 16ms high defination color
● 35°Angle 3D Attechment
● Built-in LED Ring Light
● High brightness and contrast, low power consumption
● Independent video display
● Laser Pointer

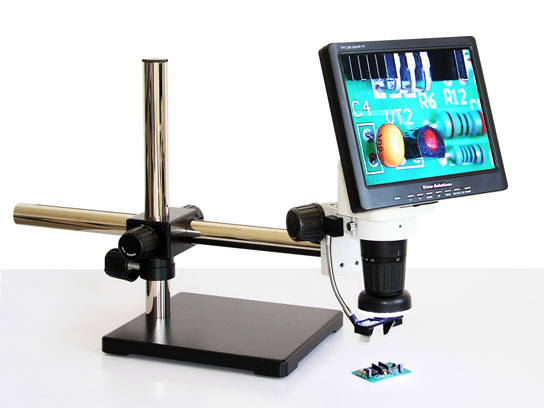

M-LCD Video Microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It features high performance of CCD image capturing, high resolution of LCD display and reverting genuine images. Based on 2D observation, 3D angle attachment is added to obtain 3D multi-angle observation. Laser locating function can easily identify the position of observation. This unit integrates magnification, imaging, display, LED illumination and laser locating functions. Compact design, light weight and low power consumption make the operation simple and convenient. M-LCD Video Microscope can be conveniently applied to testing and inspecting in product assembly, research and teaching fields.

Product No.

Picture Preview	P/N	Name	Description
	MV100401	Video Zoom Microscope Body	PAL or NTSC Video Output; Standard Built-in 0.5X Video Coupler (Optional: 0.35X Video Coupler); with 1X Objective Lens; 0.7-4.5X zoom body with detents; Zoom Ratio 1:6.5; Built-in LED Ring Light; With Laser Pointer
	MV100411	8” LCD Video Zoom Microscope Body	8" LCD Monitor. PAL or NTSC Video Output, Magnification 11.9X-76.2X, 0.7-4.5X zoom body with detents, zoom ratio 1:6.5, built-in LED Ring Light
	MV100412	10” LCD Video Zoom Microscope Body	10.4" LCD Monitor. PAL or NTSC Video Output, Magnification 15.4X-99.1X, 0.7-4.5X zoom body with detents, zoom ratio 1:6.5, built-in LED Ring Light
	MV191101	35º View Angle Attachment	35º View Angle Attachment with a 0.75X Objective Lens, for MV100411 or MV100412 LCD Zoom Microscope Body
	MV191102	0.3X Objective Lens	25º View Angle Attachment with a 0.75X Objective Lens, for MV100411 or MV100412 LCD Zoom Microscope Body
	MV191111	35º View Angle Attachment	35º View Angle Attachment with a 0.5X Objective Lens, for MV100411 or MV100412 LCD Zoom Microscope Body
	MV191201	90º View Angle Attachment	The 90 º View Angle Attachment (between the Zoom Body and Objective Lens) introduces a 90 º bend in the optical axis. Optional objective lens, for MV100411 or MV100412 LCD Video Microscope
	MZ103101	0.3X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 331.5mm, for MZ Series Micro Zoom Lens
	MZ103102	0.5X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 199.1mm, for MZ Series Micro Zoom Lens
	MZ103103	0.75X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 131mm, for MZ Series Micro Zoom Lens
	MZ103104	1X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 97.3mm, for MZ Series Micro Zoom Lens
	MZ103105	1.5X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 60.9mm, for MZ Series Micro Zoom Lens
	MZ103106	2X Objective Lens	Semi-plan achromatic design, outside dia. 30mm, working distance 46.3mm, for MZ Series Micro Zoom Lens
	MV193101	Body-BNC Video Cable	1.5m BNC Video cable, providing a Video Output to connect with the other Monitor or Frame Graber and computer
	MV193102	BNC-RCA Video Cable	1.5m BNC to RCA Video Cable
	MV193103	Body-S-video Video Cable	1.5m BNC cable, providing a S-Video Output to connect with the other Monitor or Frame Graber and computer
	MV193107	BNC-AV Video Cable	1.8m BNC-AV cable, for connecting MV100410 with GP030311 or GP030302 LCD Monitor
	MV193201	Laser Pointer	For LCD microscope, wave length: 650nm, input voltage: 4.5V
	MV193301	8" LCD monitor with the LCD scope adapter	8“ LCD Monitor, with the adapters for LCD Scope
	MV193302	10" LCD monitor with the LCD scope adapter	10.4“ LCD Monitor, with the adapters for LCD Scope

Application

The video out connector is for connecting with the other video monitor or the signal process system when needed. When required, the LCD Video Microscope can be connected to a computer, but a frame grabber and an operation system need to be installed in the computer. The microscope' s video signal is converted and transferred into a computer via video out connector and a frame grabber.

Specifications

Zoom Body of Zoom Range: 0.7X-4.5X
Zoom Ratio: 1: 6.5
Total Magnification: 2.5X-152.4X (8" LCD Microscope) ; 3.2X-198.1X (10.4" LCD Microscope)
Field of View: 1.3mm-81.6mm
Working Distance: 46mm-331mm
Resolution: 640×480 (8" LCD Microscope) ; 1024×768 (10.4" LCD Microscope)
Video Angle: 150°
Objective Lenses: 0.3X, 0.5X, 0.75X, 1X(standard), 1.5X, 2X
W.B.: Manual
Power Supply: AC 85-265V, 50/60Hz
LED Ring Light: DC 12V, with adjustable brightness
3D Angle Attachment: 35° for 0.75X objective lens
Laser Pointer: 650nm
Video Output: BNC connector/ S-Video connector
Body Size: suitable for 76mm scope holder
LCD Video Zoom Microscope Body with reticle function

Datasheet (Optical Datasheet )

Auxiliary Lens	Working Distance (mm)	8" LCD Video Zoom Microscope				10.4" LCD Video Zoom Microscope
		Couplers				Couplers
		0.35X		0.5X		0.35X		0.5X
		Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)
0.3X	331.5	2.0X-13.5X	109.5-16.3	3.0X-20.3X	79.6-11.9	4.0X-27.0X	59.7-8.9	5.0X-33.8X	57.2-8.5
0.5X	199.1	3.4X-22.5X	65.7-9.8	5.0X-33.8X	47.8-7.1	6.7X-45.0X	35.8-5.3	8.4X-56.3X	34.3-5.1
0.75X	131	5.0X-33.8X	43.8-6.5	7.5X-50.6X	31.8-4.7	10.1X-67.5X	23.9-3.6	12.6X-84.4X	22.9-3.4
1.0X	97.3	6.7X-45.0X	32.8-4.9	10.1X-67.5X	23.9-3.6	13.4X-90.0X	17.9-2.7	16.8X-112.5X	17.2-2.6
1.5X	60.9	10.1X-67.5X	21.9-3.3	15.1X-101.3X	15.9-2.4	20.1X-135.0X	11.9-1.8	25.1X-168.8X	11.4-1.7
2X	46.3	13.4X-90.0X	16.4-2.4	20.1X-135X	11.9-1.8	26.8X-180X	9-1.3	33.5X-225X	8.6-1.3
