digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
Polarizing Microscopes Meiji

applications



Polarizing microscopes are extremely useful for specialized medical and industrial applications, such as identifying crystals or fibers suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials. Meiji Techno offers five series of polarizing microscopes, the ML and the all new MT series:
ML9200

Transmitted 30 watt illumination. Designed for slide mounted specimens or thin sections of minerals and rocks, suspended particles or crystals, chemicals, organics or in-organics.

ML9430

30 watt incident and 30 watt transmitted illumination. Designed for slide mounted specimens or thin sections as well as opaque objects and substrates with polarized illumination through the objectives.

ML9720

Transmitted 50 watt illumination with Senarmont compensator. Extra high powered illumination with the ability to dial-in retardation levels in the FOV.

MT9200

New design with transmitted 30 watt illumination.
All MT Series models offer a Senarmont compensator as an optional accessory.

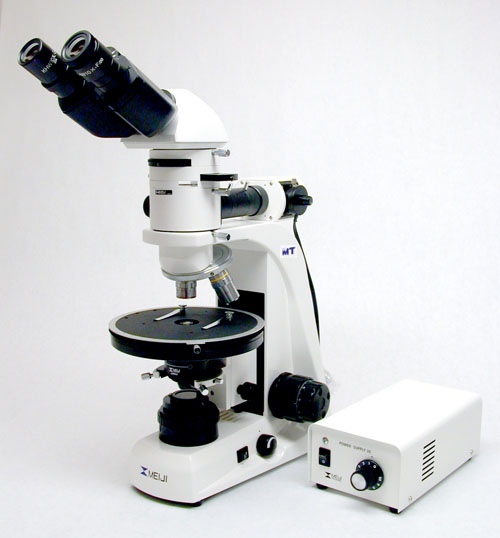

MT9900

The new MT design with 30 watt incident and 30 watt transmitted illumination. All MT Series models offer a Senarmont compensator as an optional accessory.

Model
Viewing Head
Eyepieces
Objectives
Stage
Condenser
Illumination
ML9200
Sliding Type Bino.
HWF10x FN20
Strain-free SM.Plan 4x, 10x, S40x
Rotatable, centerable, circular stage w/clips
Strain-free NA 1.25 achromatic w/ iris diaphragm
Koehler Illuminator 6V 30W halogen transmitted
ML9300
Sliding Type Trino.
ML9420
Sliding Type Bino.
Vertical Koehler and transmitted Koehler 30W illumination
ML9430
Sliding Type Trino.
ML9720
Sliding Type Bino.
Koehler Illuminator 12V 50W halogen transmitted
ML9730
Sliding Type Trino.
MT9200
Siedentopf Bino.
KHW10XCP FN20 with automatic reticle alignment compensation system
All New Infinity Corrected Strain-free S.Plan 4x, 10x, S40x
Ceramic Coated, circular stage w/clips rotatable, pre-centered
Strain-free NA 1.25 achromatic w/ iris diaphragm in dovetail mount
Koehler Illuminator 6V 30W halogen transmitted
MT9300
Siedentopf Trino.
MT9920
Siedentopf Bino.
Vertical Koehler and transmitted Koehler 30W illumination
MT9930
Siedentopf Trino.
