digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
Polarizing Microscopes MT9000


Meiji Techno's brand new polarized microscopes are the MT9000 Series with incident illumination, and the MT9900 Series with incident and transmitted illumination among other features. The MT9000 and MT9900 Series employ all new and improved strain free S. Plan optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of thin sections and other mounted samples fast and easy while delivering an excellent cost-to-performance ratio. Features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • 30W Transmitted Koehler Halogen Illuminator
  • 30W Vertical Incident Koehler Halogen Illuminator (MT9920 & MT9930)
  • Strain Free Optics Throughout
  • Brightfield and Polarized Light observation modes
  • Optional Point Counting Stage

VIEWING HEADS
Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.

Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.

EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard. A Widefield High Eyepoint 10X focusable eyepiece that has a 21mm crossline reticule and guide pin is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.

polarizing research microscope

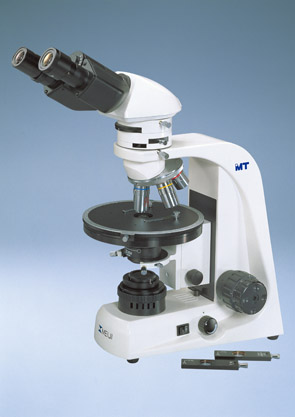

MT9200 Transmitted Light Model

OBJECTIVES
Meiji Techno offers an assortment of S.Planachromat Infinity Corrected objectives for Transmitted Light or Incident Light .

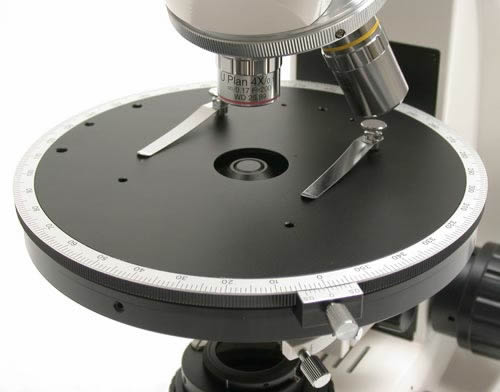

STAGE
Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips. Stage Dimensions.

CONDENSER
All new Strain Free Abbe N.A. 1.25 condenser with iris in dovetail mount.

ILLUMINATION
Powerful 30 watt Koehler halogen illumination in either transmitted and/or vertical incident, provides enhanced image quality and brightness for the observation of specimens.

POLARIZING ACESSORIES
All MT9000 Series come standard with 1/4 wave plate, Bertrand lens and first order red plate. Optional Senarmont compensator and quartz wedges are available along with attachable point counting stage.

Click here to enlarge.



Download MT9000 Product Brochure

Download MT9900 Product Brochure


MT9900 Series

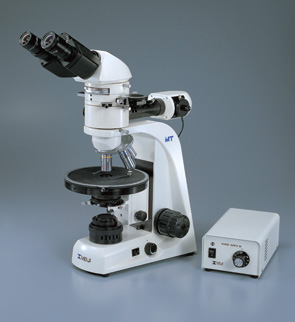

MT9920 Incident and Transmitted Light Model


 MT9000 Series Transmitted Brightfield Models
Model
Head
Illumination
Eyepieces
Objectives
Stage
Condenser

MT9200

Bino.
Transmitted 30W Koehler
KHWF10XCP FN20
Strain Free S.Plan 4x, 10x, 40xS
Rotatable 360 degree, graduated with vernier
Strain Free Abbe NA 1.25 with iris in dovetail mount

MT9300

Trino.
 *New!*
MT9900 Series Incident and Transmitted Brightfield Modelswith Focusable Bertrand lens, Rotatable Analyzer, 3-Position Slider with 1st Order Red, 1/4 Wave Plate, Brightfield Position, and swing-out condenser.
Model
Head
Illumination
Eyepieces
Objectives
Stage
Condenser
MT9920
Bino.
Transmitted 30W Koehler & 30W Vertical Koehler Incident
KHWF10XCP FN20
Strain Free S.Plan 4x, 10x, 40xS
Rotatable 360 degree, graduated with vernier
Strain Free Abbe NA 1.25 with swing-out top lens, with iris in dovetail mount
MT9930
Trino.

MT9900 Series

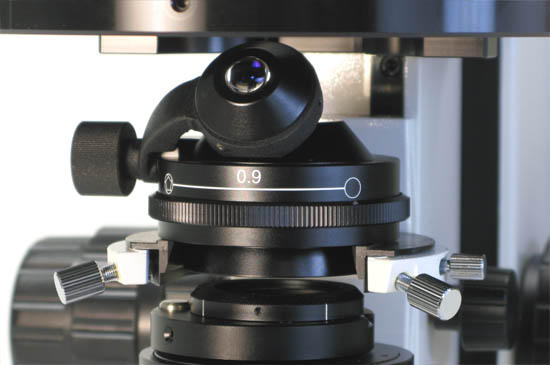

Strain Free Abbe Condenser with Swing-out Top Lens

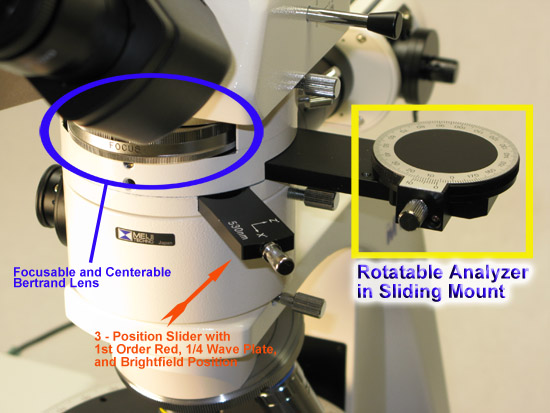

Centerable Bertrand Lens and Centerable Nosepiece

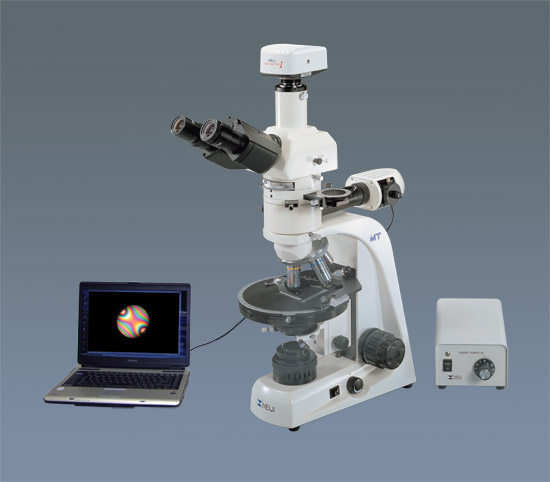

The MT9930 is shown below with our DK3000 CMOS USB2 digital camera.



 MT9000 & MT9900 Series Components & Accessories
 Viewing Heads
Part Number
Description
MA952
Siedentopf-type binocular head, 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.
MA953
Siedentopf-type trinocular head, 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.
 Eyepieces
Part Number
Description
MA407
KHW10XCP compensating 23.2mm eyepiece, FN20 (standard) (accepts 19mm reticle)
MA407CP
KHF10X-F; 23.2mm focusing eyepiece, FN20 with crossline (optional) (accepts 21mm reticle)
 Strain Free S. Plan Objectives for Transmitted Light - Infinity Corrected - F = 200mm
MA935
Strain Free S.Planachromat 4X objective, NA: 0.10, WD = 15.3mm (included)
MA936
Strain Free S.Planachromat 10X, objective, NA: 0.25, WD = 7.3mm (included)
MA937
Strain Free S.Planachromat 20X objective, NA: 0.73, WD = 5.0mm (optional)
MA938
Strain Free S.Planachromat 40XS objective, NA: 0.65, WD = 0.72mm (included)
MA939
Strain Free S.Planachromat 60XS objective, NA: 0.85, WD = 0.2mm (optional)
MA940
Strain Free S.Planachromat 100XS oil objective, NA: 1.25, WD = 0.14mm (optional)
 Strain Free S. Plan Objectives for Incident Light- Infinity Corrected - F = 200mm
MA935
Strain Free S.Planachromat 4X objective, NA: 0.10, WD = 15.3mm (included)
MA936
Strain Free S.Planachromat 10X, objective, NA: 0.25, WD = 7.3mm (included)
MA947
Strain Free S.Planachromat 20X objective, NA: 0.40, WD = 5.2mm (optional)
MA948
Strain Free S.Planachromat 40XS objective, NA: 0.65, WD = 0.81mm (optional)
 Components & Accessories
MA299
MA945

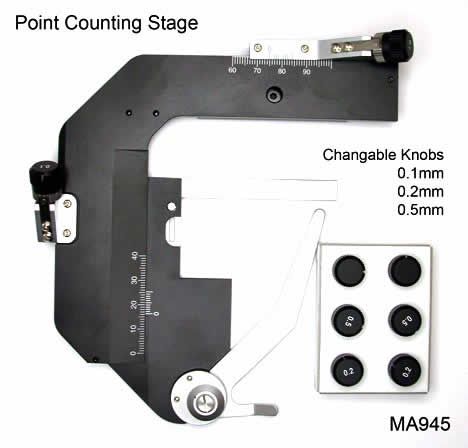

Attachable Point Counting Mechanical Stage (optional)
MA946
Stage Clips - 2 pieces (included)
MA469/05
1/4-wave test plate in DIN sliding mount (included)
MA470/05
First Order Red Compensating Plate in DIN sliding mount (included)
MA471/05
Replacement Analyzer in sliding mount (included)
MA477/05
Replacement Bertrand Lens in sliding mount (included)
MA954
Strain Free Abbe Condenser N.A. 1.25 with iris diaphragm (included)
MA809/10
Replacement 115V AC Power cord with plug (USA)
MA809/20
Replacement 220V AC Power cord with plug (Eurocord)
MA809/30
Replacement 240V AC Power cord with plug (UK)
MA326
Spare bulb for illuminator, 6V, 30W
MA327
Spare fuse for halogen illuminator, 3A
MA961
Wooden Storage Cabinet with lock and key (option)
MA711
Dust Cover (included)
MA904/05
Senarmont Compensator for MT9000 Series (A highly accurate 1/4 wave plate plus rotating analyzer used to measure retardation) (option)
MA904/10
Senarmont Compensator for MT9900 Series (A highly accurate 1/4 wave plate plus rotating analyzer used to measure retardation) (option)
MA905
Interference Color Chart (option)
MA654/05
Quartz Wedge 6 order for MT9000 Series (option)
MA654N/05
Quartz Wedge 6 order graduated for MT9000 Series (option)
MA654N/10
Quartz Wedge 6 order graduated for MT9900 Series (option)
MA945
Point Counting Stage for MT9000 Series (option) (does not fit ML Series stages)
MA956
Rotatable Analyzer in sliding mount, 180 degree graduated for MT9200 and MT9300 (option)
MA956/05
Rotatable Analyzer in sliding mount, 180 degree graduated (included with MT9920 and MT9930)
MA955
6V 30W Vertical Koehler Illuminator (included with MT9920 & MT9930)
MA927/05
Power Supply for MA955 Vertical Illuminator 100 - 260VAC (included with MT9920 & MT9930)
MA200
Eyeshield (ea) for MA407 10x eyepieces (included)
MA946
Stage Clips (pair) (included)
