ELZ Mini Stereo Zoom Binocular Microscope Packages
The new ELZ Mini Stereo Zoom Binocular Microscope from Scienscope offers high performance optics and features without the high performance price tag to match. The optical system is suitable for all industrial, electronics, and educational inspection applications. The internal mechanics are based on our dependable NZ series. The sealed microscope body is perfect for use in harsh environments as well as clean rooms.
ELZ Microscope Body Features
Available upgrades on eyepieces, objective lenses, light sources and many other microscope components allows flexible adaptation to your changing workflow.
Anti-mold and air-tight sealed body design eliminates the need for regular maintenance and adds additional reliability in most working environments.
Based on the NZ series microscope construction, the ELZ outperforms many competitors in the compact category.
ELZ Data Sheet
Microscope Body Specifications
Microscope Body Zoom Range 0.7X - 3X Zoom Ratio 1:4.3 Magnification w/ 10X eyepieces 7X to 30X Field of View 31.4mm - 7.3mm Working Distance 100mm Eyepieces Inclination 60° Dioptric Adjustment ±5 Dual Independent Interpupillary Adjustment 46mm - 76mm Microscope Ring Mount Diameter 76mm Available Eyepieces 10X, 15X and 20X Available Objective Lens 0.5X and 2X
To made things easier, we have provided a wide range of packages that are suitable for your applications. Please choose a package listed below for your convenience. Packages other than PLZ-P1 do not include any light sources.A full range of eyepieces and objective lenses are also available, please refer to the specification below for more additional option.
ELZ OPTICAL SPECIFICATIONS Obiective Lens Working Distance (mm) Eyepieces 10X 15X 20X Mag. FOV (mm) Mag. FOV (mm) Mag. FOV (mm) 0.5X 177mm 3.5X-15X 66.9-15 5.3X-22.5X 4.6-11 7X-30X 36-8.3 DEFAULT(1X) 100mm 7X-30X 31.4-7.3 10.5X-45X 22.9-5.3 14X-60X 17.9-4.1 2X 26mm 14X-60X 16-3.7 21X-90X 11.4-8 28X-120X 9-6.0
Packaged Specifications: Below SCIENSCOPE Packages comes with the highlighted specifications. Mag. = Magnification, FOV = Field of View, WD = Working Distance

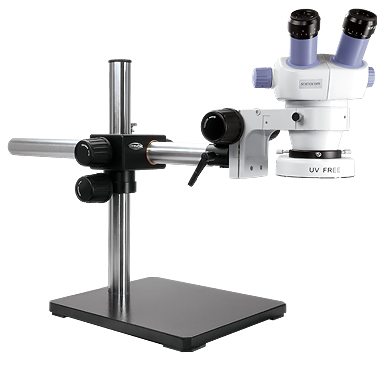

ELZ-P1 Boom Stand System
This package is perfect for routine inspection of large samples where continuous horizontal movement of the microscope is not required. Light source is includedELZ-P1 System Includes:
- ELZ binocular microscope body (ELZ-BD-B2)
- 10X eyepieces (ELZ-LE-W10)
- Focus mount (SB-AB-SZ)
- Single arm boom stand (SB-BM2-S0)
- LED adjustable ring light w/ built-in power supply(IL-LED-E1)

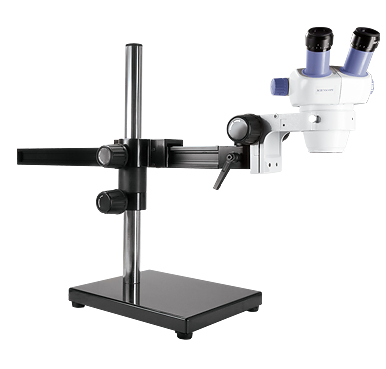

ELZ-600 Boom Stand System
This package is perfect for routine inspection of large samples where continuous horizontal movement of the microscope is not required.ELZ-600 System Includes:

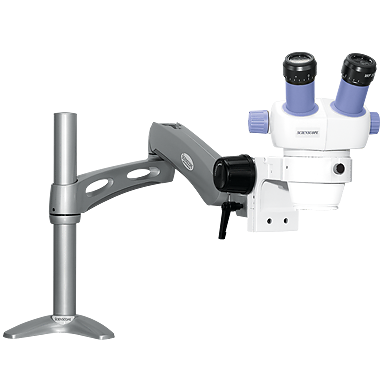

ELZ-500 CF Arm System
This package is an ideal solution for an overcrowded workbench. The articulating arm clamps onto most surfaces, therefore freeing up valuable space.ELZ-500 System Includes:

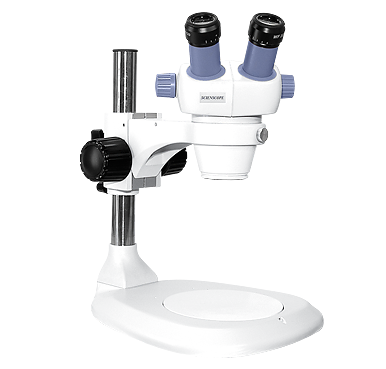

ELZ-300 Post Stand System
This stable and compack package is also ideal for smaller applications like medical device application or crowded working environments. With 12" vertical post allows the rack and pinion to travel at a great working distance.ELZ-300 System Includes:

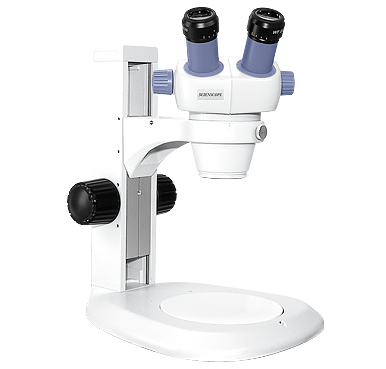

ELZ-100 Track Stand System
This stable and compact package is ideal for smaller applications like medical device application or crowded working environments. The track stand provides a continuous smooth vertical travel of 4" with 76mm microscope holder.ELZ-100 System Includes:
