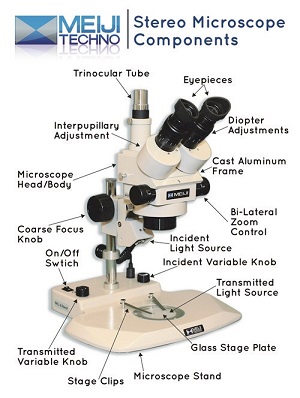

EMZ Stereo Microscope Components Diagram

Modular Flexibility
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, etc.

Components & Accessories
* Eyepeices
* Stands
* Focus Block Holder
* Auxiliary Lens
* Illuminsators
* Micrometer Lens
* Stages
* Polarizing Accessories
* Protective Glass Covers
* Cameras
* C Mount/Camera Adapters

Package Includes:
» Dust Cover (MA703)
» Rubber Eyeguards/Eyeshields (Paired) (MA600)
» EMZ Instruction Manual
» Limited Lifetime Warranty Card

---

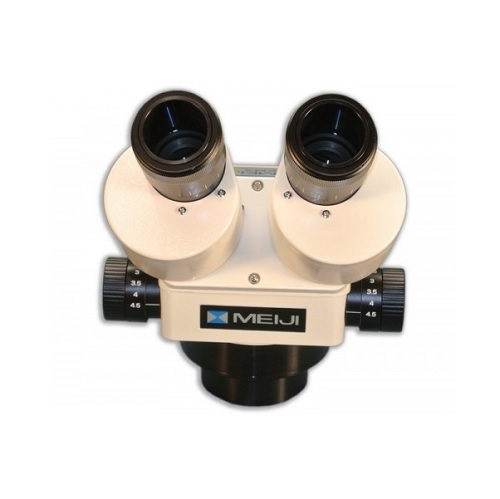

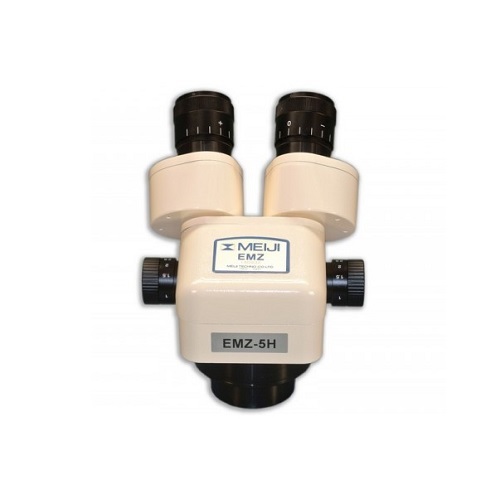

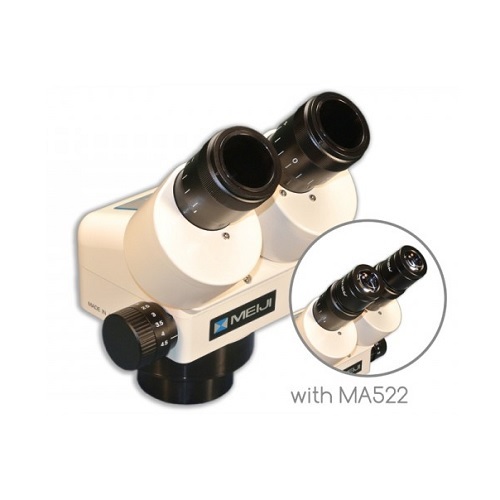

**NEW** EMZ-5H (0.7x - 4.5x) Binocular Zoom Stereo Body. High Eyepoint Capability. Working Distance 93mm. Requires MA522 - 10x High Eyepoint Eyepieces. The EMZ-5H body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. This EMZ-5H model has a ½” (12.7mm) more field of view than the standard EMZ-5 model ideal for eyeglass users but also compatible for all. The EMZ-5H employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5H offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users. Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction Zoom Ratio: 6.5:1 Zoom Range: 0.7x - 4.5x Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 Zoom Control: Dual, graduated, bilateral Magnification: 7x - 45x (10x eyepieces) Objective Lens: Brass Construction Field of View: 32mm - 5.1mm Working distance: 93mm Eyetube Inclination: 45° Eyepieces: High Eyepoint 10x, (MA522- Paired) (Required) Interpupillary Distance: 54mm - 75mm Dioptric Adjustment: Dual (+/- 5 diopters) Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces) Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces) Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional) Mounting: Fits 84.5mm Diameter Focus Holders

Click Thumbnail to Enlarge Photo

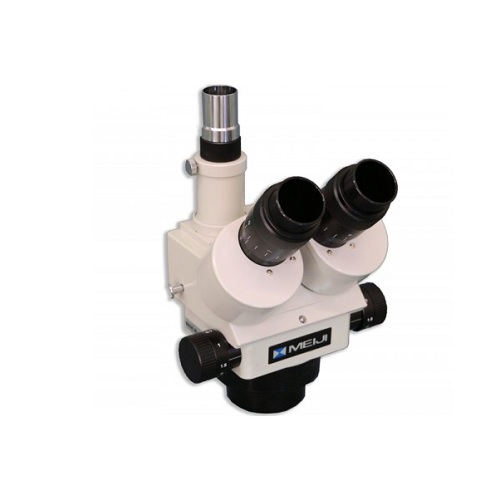

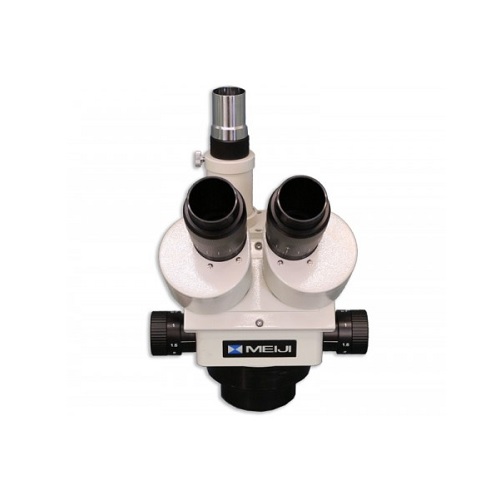

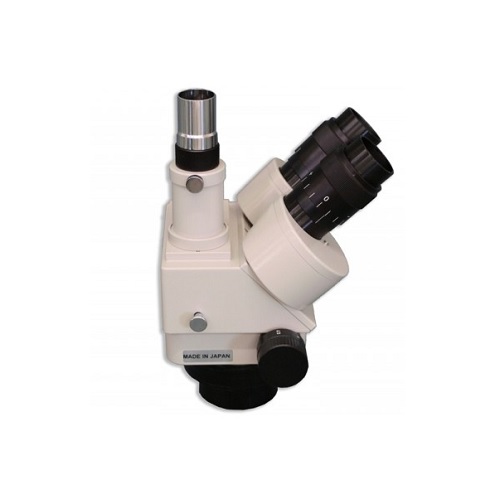

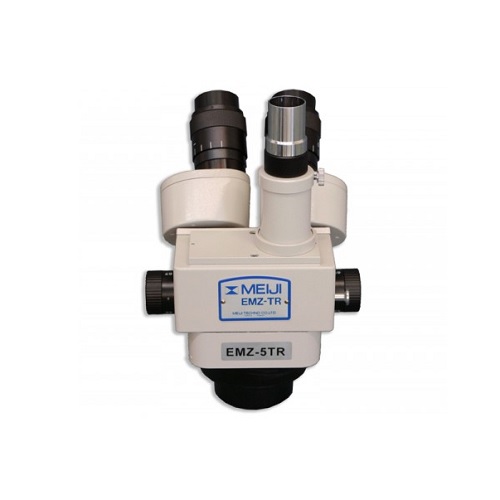

**NEW** EMZ-5TRH (0.7x - 4.5x) Tinocular Zoom Stereo Body. High Eyepoint Capability. Working Distance 93mm. Requires MA522 - 10x High Eyepoint Eyepieces. The EMZ-5TRH trinocular zoom body is used for photography and video applications. When the beamsplitter is engaged 100% of the light from the left optical path is directed to the phototube. The image can still be viewed through the right eyetube. The EMZ-5TRH employs Greenough optics, for improved image flatness and contrast. The EMZ-5TRH offers high resolution erect unreversed stereoscopic image. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography made easy with over 300 available digital, analog and SLR camera adapters. Suitable for eyeglass users. Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction Trinocular Port: 23.2mm I.D, 25.2mm O.D Zoom Ratio: 6.5:1 Zoom Range: 0.7x - 4.5x Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 Zoom Control: Dual, graduated, bilateral Magnification: 7x - 45x (10x eyepieces) Objective Lens: Brass Construction Field of View: 32mm - 5.1mm Working distance: 93mm Eyetube Inclination: 45° Eyepieces: High Eyepoint 10x (MA522 - Paired) (Required) Interpupillary Distance: 54mm - 75mm Dioptric Adjustment: Dual (+/- 5 diopters) Extended Mag Range: 2.1x - 270x Extended Working Distances: 34mm - 251mm Mounting: Fits 84.5mm Diameter Focus Holders Auxiliary Lens: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

Click Thumbnail to Enlarge Photo

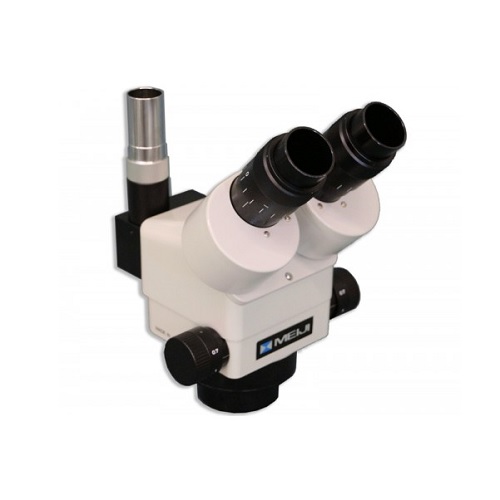

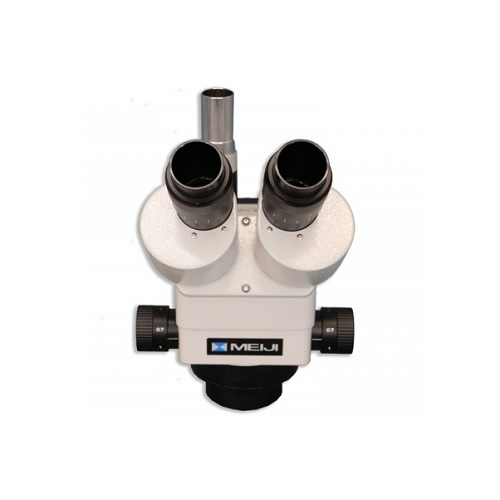

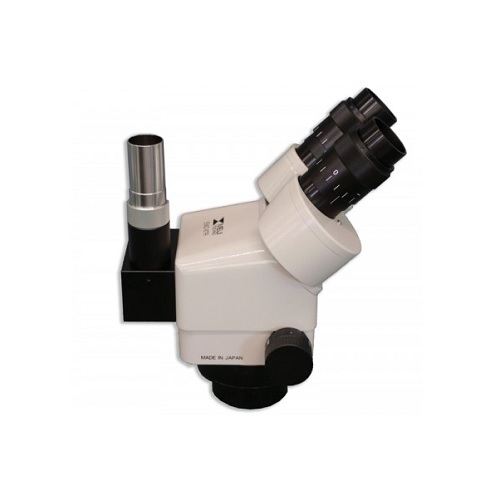

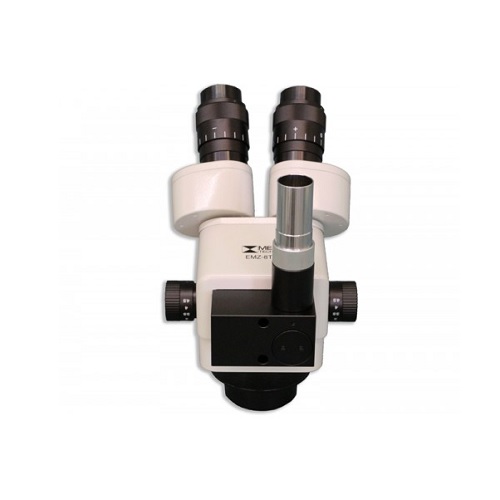

**NEW** EMZ-8TRH (0.7x - 4.5x)Tinocular Zoom Stereo Body. High Eyepoint Capability. Working Distance 104mm. Requires MA522 - 10x High Eyepoint Eyepieces. The EMZ-8TRH zoom body offers direct light to all three viewing ports simultaneously. The EMZ-8TRH is designed for high-contrast images and an excellent zoom range of 6.5:1 that is parfocalled all throughout the zoom range. With Greenough optics, for improved image flatness and contrast, resulting in brighter images at the periphery of the field of view. The EMZ-8TRH offers erect, unreversed stereoscopic images providing high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography made easy with over 300 available digital, analog and SLR camera adapters. Suitable for eyeglass users. Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction Trinocular Port: 23.2mm I.D, 25.2mm O.D Zoom Ratio: 6.5:1 Zoom Range: 0.7x - 4.5x Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 Zoom Control: Dual, graduated, bilateral Magnification: 7x - 45x (10x eyepieces) Objective Lens: Brass Construction Field of View: 32mm - 5.1mm Working distance: 104mm Eyetube Inclination: 45° Eyepieces: High Eyepoint 10x (MA522 - Paired) (Required) Interpupillary Distance: 54mm - 75mm Dioptric Adjustment: Dual (+/- 5 diopters) Extended Mag Range: 2.45x - 202.5x (With auxiliary lenses and eyepieces) Extended Working Distances: 57mm - 250mm (With auxiliary lenses and eyepieces) Mounting: Fits 84.5mm Diameter Focus Holders Auxiliary Lens: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)

Click Thumbnail to Enlarge Photo

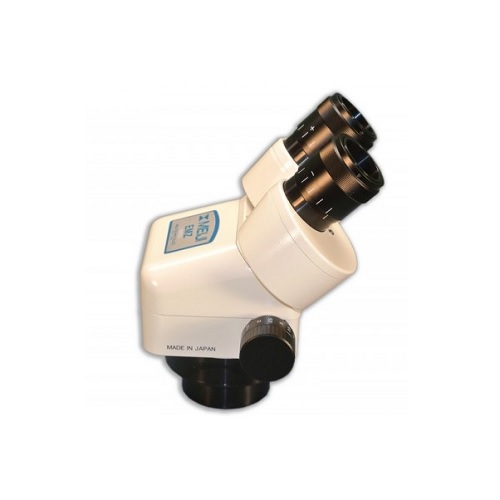

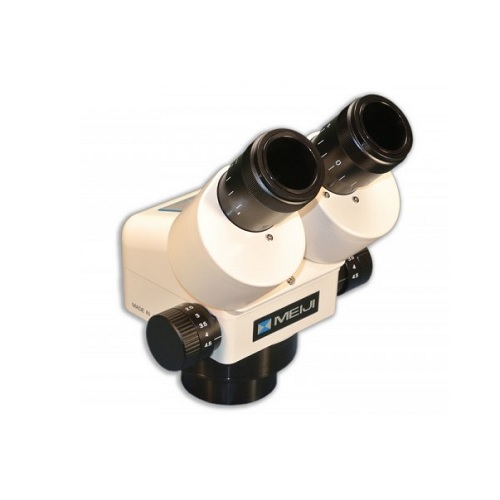

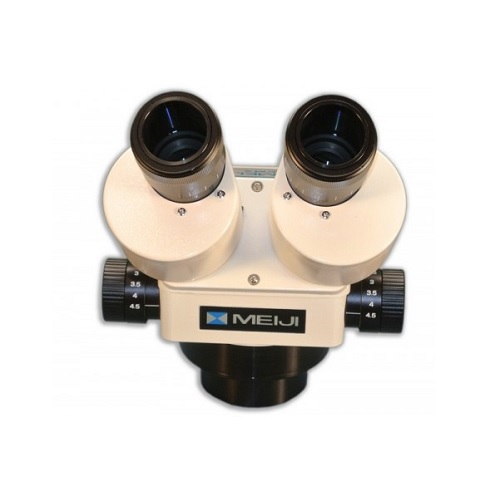

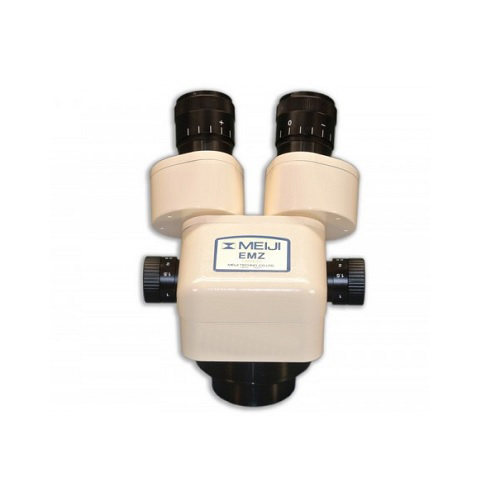

**NEW** EMZ-10H (0.7x - 4.5x)Binocular Zoom Stereo Body. High Eyepoint Capability. Working Distance 110mm. Requires MA522 - 10x High Eyepoint Eyepieces. The EMZ-10H body has a long 110mm working length, increase focal depth and a wide field number combine to make the EMZ-10H prefect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-10H offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users. Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction Zoom Ratio: 6.5:1 Zoom Range: 0.7x - 4.5x Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 Zoom Control: Dual, graduated, bilateral Magnification: 7x - 45x (10x eyepieces) Objective Lens: Brass Construction Field of View: 32mm - 5.1mm Working distance: 110mm Eyetube Inclination: 45° Eyepieces: High Eyepoint 10x (MA522 - Paired) (Required) Interpupillary Distance: 54mm - 75mm Dioptric Adjustment: Dual (+/- 5 diopters) Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces) Extended Working Distances: 45mm - 332mm (With auxiliary lenses and eyepieces) Mounting: Fits 84.5mm Diameter Focus Holders Auxiliary Lens: 0.3x (326mm), 0.4x (247mm), 0.5x (194mm), 0.75x (127mm), 1.5x (64mm), and 2.0x (44mm) (optional)

Click Thumbnail to Enlarge Photo
