HD801m12 HD High Definition 1080p Digital Microscope 2x—59x or 4x —118x with 11.6” Retina HD Display

  • HD801LABM12
  • HD801LBSM12

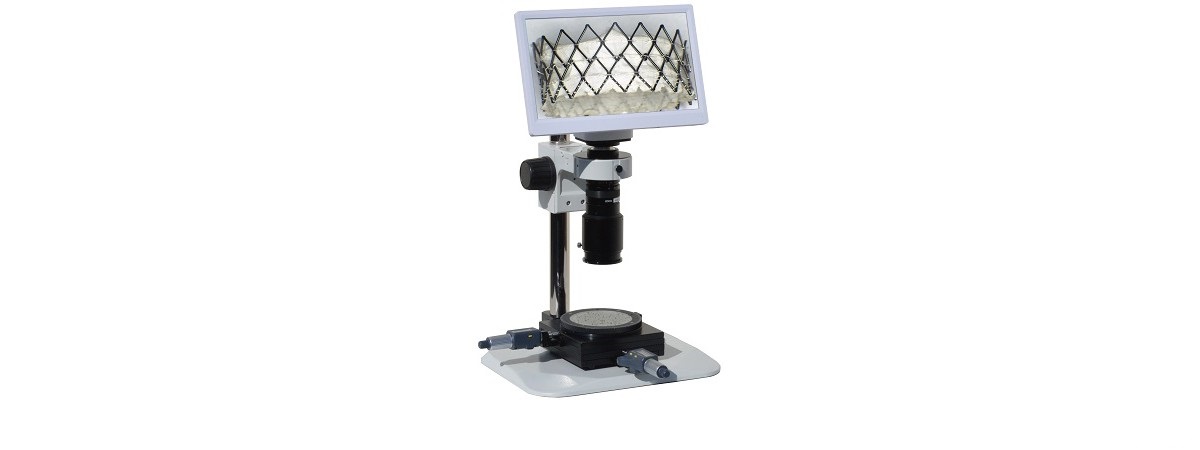

  • HD801LBSM12XY
  • HD801LBSm12XY Crosshair
  • HD801LDUM12
  • HD801LUSM12





HD801m12 is the ultimate HD high definition 1080p digital microscope with integrated 11.6 inch Retina HD Display offering superb image quality at 60 frames per second for inspection and real time viewing. High resolution 6 mega pixels (3264x1836) images and 1080p full motion video can be saved direct to SD card for documentation, training and communication with other engineers or colleagues. NO computer needed! The camera has dual HDMI and USB output for optional direct connection to computer via USB port for video measurement application and also direct image and video capture to computer. Full camera settings can be easily adjusted with a mouse, which is interfaced directly with HD camera.

The HD digital microscopes offer long working distance from 4.5 inch to 12 inch with good clearance for assembly or rework applications. Viewing angle can be changed from top down to oblique side profile. Integrated 11.6 inch Retina HD Display with adjustable viewing angle eliminates monitor foot print on work bench. With 11.6 inch HD monitor, video magnification is from 2x to 59x. Optional rear 2x coupler can increase magnification from 4x to 118x. The microscope system can also connect with 24 inch HD monitor for 5x to 122x video magnification or 10x to 244x with optional rear 2x coupler. Diagonal Field of View range is from 5mm to 103mm (0.2 inch to 4.1 inch). High intensity LEDs with adjustable dimmer offers bright and uniform lighting. Removable diffuser glass can be used to eliminate glare or reflection from shiny objects.

The HD inspection system is available with various microscope stands like articulating arm stand, basic stand, back lighting stand, dual arm ball bearing sliding stand, or universal stand. Articulating arm stands can be mounted using clamps to work bench edge or hard mount to table surface. In addition to video measurement software, X-Y measurement stage with cross hair on monitor screen is also a popular option for routine measurement applications. Other lighting options including polarizer lighting, dual arm fiber light guide and fluorescent are also available. Laser pointer is also great for locating the inspection area. We can also customize the system to match your special needs.

The HD digital microscope with integrated screen can help operator with proper head and neck positon to reduce fatigue and neck stress so productivity and efficiency can be improved. Better ergonomics can help operators perform better and with higher accuracy. The HD 1080p monitor can also be used as a presentation tool to show and display quality work or for training purpose. Since everyone can see the real time image all at the same time, communication can be improved and errors can be minimized. Motion video recording is also great for archiving training videos for operators to review.


Key Benefits

» High Definition HD 1080p 60 fps video display without lag 60 fps
» Healthy Ergonomics for reducing neck stress and eye fatigue
» Great Depth of Field with adjustable iris and aperture
» Long Working Distance: 4.5" to 12"
» Wide field of view 5mm to 103mm (0.2 inch to 4.1 inch)
» Adjustable Viewing Angles (0 to 90 degrees)
» Real Time Full Motion HD1080p 60fps
» HD Video Display
» Integrated 11.6 inch HD Retina HD Display
» Compatible with larger HD monitors (17 inch to 80 inch) for training or presentation purpose
» High resolution 6 mega pixels (3264x1836) images can be saved to SD card directly. NO computer needed !
» 1080p full motion video can be saved directly to SD card
» Parfocal lens so that image stays in focus when magnification is changed at same working distance
» Dual USB output for direct connection to computer’s USB port
» Full camera settings control
» Adjustable high intensity LEDs with diffuser plate to reduce glare
» Many stand and hardware options
» Fluorescent, halogen and polarizer lighting options
» Video measurement software options


Application

» Assembly
» Inspection
» Production
» Quality Control
» Failure Analysis
» Electronics
» Documentation
» Medical Device
» Machining CNC
» Aerospace
» Natural Science
» Semiconductor
» Biomedical Device
» Animal surgery
» Training video
» Measurement


Articulating Head Features

Universal Boom Stand
& 10" HD Monitor
XY Measurement Stage
&10" HD Monitor
Articulating Arm Stand
& 22" HD Monitor
Adjustable High
Intensity LEDs
with Diffuser Plate
XY Measurement Stage XY Stage

HD801m12 Technical Specifications

Working  Distance

Field  of  View
(Diagonal)

Video  Mag.
(11.6" Monitor)

Video  Mag.
(24" Monitor)

Low  Mag.

High  Mag.

Low  Mag.

High  Mag.

Low  Mag.

High  Mag.

4.5"

30  mm

5  mm

9x

59x

20x

122x

1.2"

0.2"

5"

36  mm

6.1  mm

8x

48x

16x

100x

1.4"

0.2"

6"

47  mm

8.1  mm

6x

36x

13x

75x

1.9"

0.3"

8"

65  mm

11.5  mm

4x

26x

9x

53x

2.6

0.5"

10"

85  mm

15  mm

3x

20x

7x

41x

3.3"

0.6"

12"

103  mm

18  mm

2x

16x

5x

34x

4.1"

0.7"



* For Field of View bigger than 4 inch to 24 inch, Please contact us
