digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
HDAF100 HD High Definition 1080p Digital Microscope 12x—132x (Optional 1x—11x and 207x—467x)

  • HDAF100 with Basic Stand
  • HDAF100 Basic Stand with Focus Holder
  • HDAF100 with Optional 24 Inch HD Monitor
  • HDAF100 Remote Control for All Camera Functions
  • HDAF100 with Optional Articulating Arm Stand and HD Monitor
  • HDAF100 with Optional Dual Gliding Arm Stand and HD Monitor
  • HDAF100 with Optional Universal Stand and HD Monitor

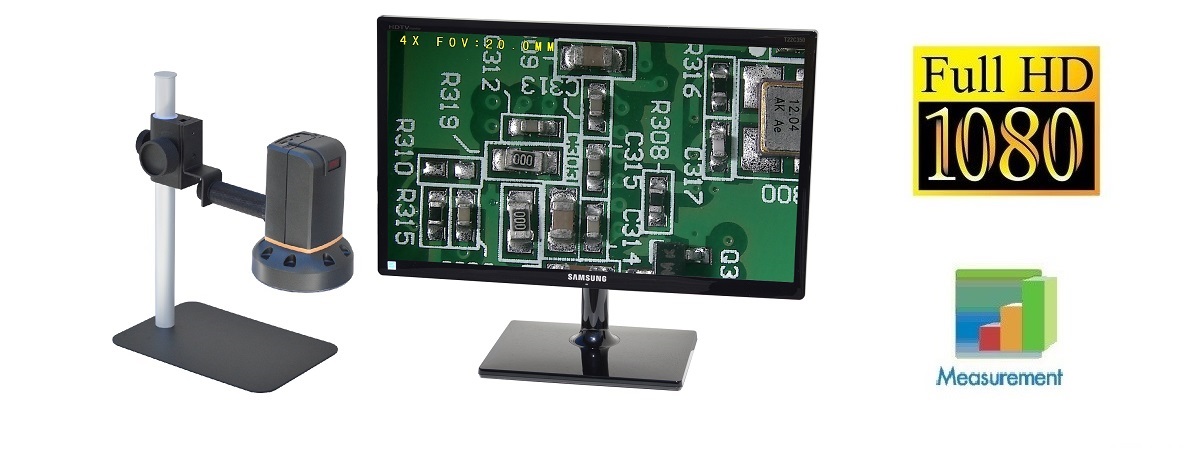

  • HDAF100 Basic Stand with Extended Arm for 6.75 inch Throat Depth



HDAF100 is the ultimate HD 1080p Auto Focus digital microscope with Auto Focus feature and 1080p (60 fps) HDMI output offering wide magnification range. The system offers standard magnification range from 12x to 132x depending on adjusted working distance from 226mm to 22.5mm. With optional taller stand offering longer working distance, magnification range can be decreased from 1x to 11x. With optional multiplier lens, magnification range can be increased from 207x to 467x depending on adjusted working distance from 10mm to 6.2mm.

The HD High Definition microscope has 1080p HDMI output, which can be connected with any HD 1080p monitor with HDMI input for real time viewing, inspection, training, discussion and presentation. HD images (1920x1080) and full motion video (1080p) can be recorded with optional recording device. Optional video measurement software is available. The auto focus feature can be set to single or continuous mode depending on customer’s application. The system has integrated LED Ring light with adjustable intensity for proper illumination to optimize image quality. Polarizer option is also available.

The HD microscope can be configured with many stand options. Optional 3 inch horizontal arm can be added to the basic stand for extended 6.75 inch throat depth for viewing smaller to larger samples. Other stands like universal stand, dual gliding arm stand and articulating arm stand are available for custom applications.

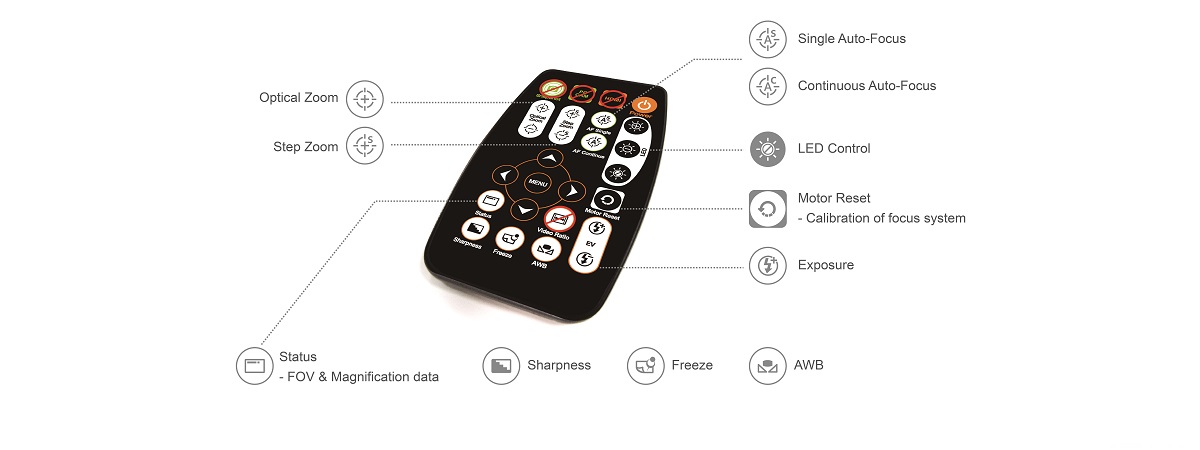

All HDAF100 functions can be controlled by the remote controller for Optical Zoom, Step Zoom, Single Auto-Focus, Continuous Auto-Focus, LED Control, Exposure, Calibration of Focusing System, FOV and Magnification Data, Video Ratio, Sharpness, Freeze, AWB


Key Benefits

» High Definition HD 1080p 60 fps video display without lag
» Healthy Ergonomics for reducing neck stress and eye fatigue
» Long Working Distance
» Wide possible video field of view
» Adjustable Viewing Angles with Optional Tilting Stand
» Real Time Full Motion HD1080p 60fps
» HD Video Display
» Can connect to larger HD monitors (17 inch to 80 inch) for training or presentation
» High resolution images can be saved
» 1080p full motion video can be saved
» Many stand and hardware options
» Full camera settings control
» Adjustable high intensity LEDs
» Video measurement software options

Applications

» Assembly
» Inspection
» Production
» Quality Control
» Failure Analysis
» Electronics
» Documentation
» Medical Device
» Matching CNC
» Aerospace
» Natural Science
» Semiconductor
» Biomedical Device
» Animal Surgery
» Training Video
» Measurement


Magnification Chart
WD (mm) WD (inch) HFOV (mm) HFOV (inch) Video Mag.
(21.5" Monitor)
457 18 82 3.2 6x
406 16 73 2.9 7x
356 14 63 2.5 8x
305 12 55 2.1 9x
254 10 45 1.8 10x
226 8.9 40 1.6 12x
198 7.8 35 1.4 14x
170 6.7 30 1.2 16x
142 5.6 25 1.0 19x
114 4.5 20 0.79 24x
86 3.4 15 0.59 32x
64 2.5 11 0.43 43x
52.5 2.1 9 0.35 53x
38 1.5 6.5 0.26 73x
22.5 0.9 3.6 0.14 132x

Working distance can be from 0.9 inch to 8.9 inch. Data are provided at different intervals.

HFOV = Horizontal Field of View

For 10 to 18 inch Working Distance, optional tall stand is required.



Magnification Chart with Optional Multiplier
WD (mm) WD (inch) HFOV (mm) HFOV (inch) Video Mag.
(21.5" Monitor)
10.0 0.39 2.3 0.091 207x
9.4 0.37 2.1 0.083 227x
9.1 0.36 2 0.079 238x
8.5 0.33 1.8 0.071 265x
8.2 0.32 1.7 0.067 280x
7.9 0.31 1.6 0.063 298x
7.6 0.30 1.5 0.059 318x
7.0 0.28 1.3 0.051 366x
6.4 0.25 1.1 0.043 433x
6.2 0.24 1.0 0.040 467x

Working distance can be from 0.24 inch to 0.39 inch. Data are provided at different intervals.

HFOV = Horizontal Field of View



Actual images are captured at 1080p (1920x1080). Click the thumbnail to expand.
