| Zoom Stereo Microscope SZ9 |
|
|
 |
| |
PRODUCTS
P/N AND NAME |
|
MA221101 |
76mm Track Stand |
SZ901201 |
Zoom Stereo Trinocular
Body |
SZ902101 |
10X Adjustable Eyepieces
(Pair) |
SZ303201 |
Ring Adapter |
MA341103 |
LED Ring Light |
SZ504102 |
0.5X Video
Coupler |
DC133210 |
1.3M CMOS Color
Camera |
GP020901 |
C-Mount Spacer |
GP030306 |
15 LCD CCVE
monitor |
● Zoom Stereo microscope
● High definition 3D images and large depth of
field
● Diopter adjustment for different eye widths
● Compact
design

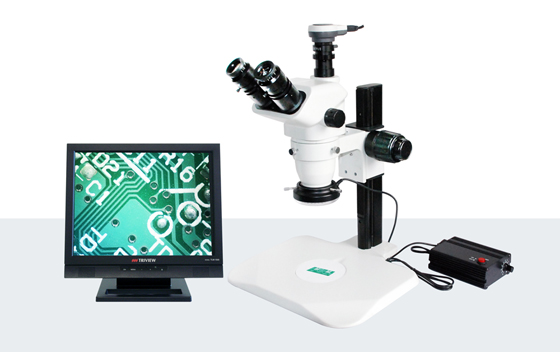

The brand new optics design adopted in the SZ6 Zoom Stereo Microscope
facilitates the microscope to deliver excellent flatness, good contrast and high
definition images in the wide field, especially on the periphery of Field of
View. The combination of compact design, long working distance and variety of
functions enables SZ6 Zoom Stereo Microscope to be applied in precision of
requirements, such as in semi-conductor and other scientific fields. The
photographing sytem of SZ6 Zoom Stereo Microscope can be equipped with CCD
cameras, digital cameras and DSLR for processing micro-image acquisition and
storage, and can be widely used in teaching, scientific research, electronic
inspection and test and assembly industry.
Picture Preview |
P/N |
Name |
Description |
|
SZ901101 |
Zoom
Stereo Binocular |
Zoom
range of zoom body: 0.67X-4.5X, zoom ratio: 1:6.7, 45° inclined
observation tubes. Eyepieces are not included for this item
Number |
|
SZ901201 |
Zoom
Stereo Trinocular Body |
Trinocular
Zoom range 0.67X-4.5X, zoom ratio 1:6.7, with two horizontal zoom knobs,
45º inclined observation tubes. Eyepieces are not included for this item
Number |
|
SZ902101 |
10X
Adjustable Eyepieces (Pair) |
Wide
Field 10X Eyepieces, with adjustable eyepiece diopter correction, 22mm
field of view, the tube outside dia. 30mm. For SZ6 Series Stereo
Microscopes |
High-eyepoint and Wide Field Adjustable 10X Eyepieces can be attached to SZ6
Zoom Stereo Microscope, and the continuous magnification is from 7X to 45X.
Optional high-eyepoint and wide field eyepieces: 10X,15X,20X,25X; Optional
auxiliary lenses: 0.3X,0.5X,0.75X,1.5X and 2.0X; Different eyepieces and
auxiliary lenses are optional and available; All kinds of scope stands are
optional and available.
| Zoom Range of Zoom Body: 0.67X-4.5X |
| Zoom Ratio: 1:6.7 |
| Magnification: 2X-225X |
 |
| Field of View: 1mm-109.5mm |
| Working Distance: 26mm-287mm |
| Interpupillary Adjustment: 54mm-76mm |
| Eyetube Inclination: 45° |
| 360°rotatable microscope head |
| Eyepiece Diopter Correction: ±5
Diopter |
| Working Distance of Built-in Objective
Lens: 100mm |
| Optional Eyepieces: 10X, 15X, 20X,
25X |
| Optional Auxiliary Lenses: 0.3X, 0.5X,
0.75X, 1.5X and 2.0X |
| Optional Video Couplers: 0.5X (For
Trinocular Body) |
Auxiliary
Lens |
Working
Distance
(mm) |
Eyepieces |
| 10X(Φ22mm) |
15X(Φ16mm) |
20X(Φ12mm) |
25X(Φ11.5mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV (mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
| 0.3X |
287 |
2.0X-13.5X |
109.5-16.3 |
3.0X-20.3X |
79.6-11.9 |
4.0X-27.0X |
59.7-8.9 |
5.0X-33.8X |
57.2-8.5 |
| 0.5X |
177 |
3.4X-22.5X |
65.7-9.8 |
5.0X-33.8X |
47.8-7.1 |
6.7X-45.0X |
35.8-5.3 |
8.4X-56.3X |
34.3-5.1 |
0.75X |
117 |
5.0X-33.8X |
43.8-6.5 |
7.5X-50.6X |
31.8-4.7 |
10.1X-67.5X |
23.9-3.6 |
12.6X-84.4X |
22.9-3.4 |
Built-in(1X) |
100 |
6.7X-45.0X |
32.8-4.9 |
10.1X-67.5X |
23.9-3.6 |
13.4X-90.0X |
17.9-2.7 |
16.8X-112.5X |
17.2-2.6 |
1.5X |
47 |
10.1X-67.5X |
21.9-3.3 |
15.1X-101.3X |
15.9-2.4 |
20.1X-135.0X |
11.9-1.8 |
25.1X-168.8X |
11.4-1.7 |
2X |
26 |
13.4X-90.0X |
16.4-2.4 |
20.1X-135X |
11.9-1.8 |
26.8X-180X |
9-1.3 |
33.5X-225X |
8.6-1.3 |
|
|
