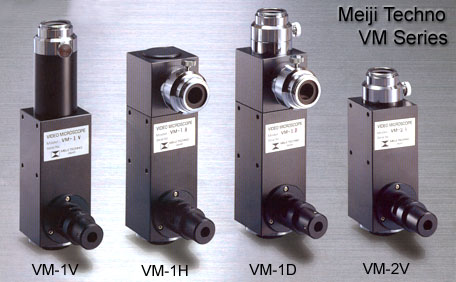

Meiji Techno's VM Series are high resolution video microscopes that offer a large array of features making them perfect for industrial, medical, educational and research applications that require high magnification with compact size or portability. The VM Series Video Microscope Systems integrate CCD or Digital CCD or CMOS video cameras, epi-illumination and high-resolution infinity corrected optics ideal for factory automation and machine vision systems. Some of the many features of this system include:

• Outstanding high-resolution images
• Wide range of objectives available from 2.5X to 100X
• Single objective port or add optional triple or quadruple nosepieces
• On screen video magnifications from less than 40X to 5500X or more
• Accepts infinity corrected objectives with RMS thread with 200mm focal length
• Compact sized pole stand with coarse and fine focus available
• Rugged aluminum housing
• Mountable on flat surfaces for simple integration and machine vision applications
• Convenient field portability possible with self powered camera and light source
• Fiber optic coaxial "cool light" illumination systems with field iris available
• Illuminator port accepts optional drop-in mounted filters
• Model VM-035 offers an aperture iris on the illuminator port
• Many useful accessories and configurations possible

VM-PC Pole StandVM-1V with DK3000

---

Ordering Information

Accessories for VM Series Video Microscopes
