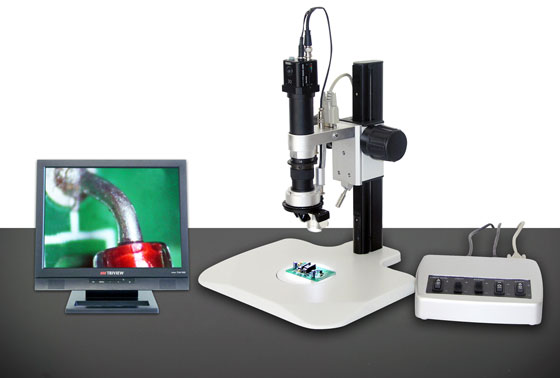

M-N3D Analog Microscope
Head |
MA221101 |
76mm Track Stand ( with M-N3D
focusing control) |
GP030306 |
15 LCD CCVE monitor |
● 0.7X-4.5X Zoom Body
● High resolution, large field of view and high zoom
ratio
● 35°angle attachment with motorized control, the rotary speed is
adjustable
● Laser pointer and side light illumination
● Bright LED lights
with area control
● Digital and Analog microscope video systems are
optional
M-N3D Microscope features the quality optical system, high
resolution, large field of view, high zoom ratio, novel design and one-up
technology, easy and automatic operations. Includes: Motorized zooming,
motorized observation angle for changing and optional motorized focusing. The
speed can be adjusted while changing observation angle. With the angle
attachment, the microscope can realize 3D image effects for observing the
components and deep holes. The LED lights can generate high brightness.
Theoretically the service life of LED lights can reach 20,000 hours. The LED
lights with area control function can illuminate from different angles for
convenient multi-angle inspections. The M-N3D Microscope can be widely used in
micro-electronics, automated monitoring and testing industries. By selecting the
appropriate objectives and video couplers, different magnification, field of
view and depth of field can be acquired. Digital and Analog video systems can
meet the different users' demands.
Picture Preview |
P/N |
Name |
Description |
|
M-N3D-7000A |
M-N3D
Analog Microscope |
Analog
Camera, AV out, MV400010 microscope body with bend arm and XY manual
stage, Input voltage: 85-265V, 50/60Hz |
|
M-N3D-7000D |
M-N3D
Digital Microscope |
Digital
Camera, USB output, MV400020 microscope body with bend arm and XY manual
stage. Input voltage: 85-265V, 50/60Hz |
|
MV400010 |
M-N3D
Analog Microscope Head |
Zoom
range of zoom body:0.7X~4.5X; 470 TV lines horizontal resolution, LED
light illuminator with multi-angle functions lighting from different
angles to the inspected area, electrically controlled; Power supply:
85-256V,50/60Hz; With observation function of angle rotation |
|
MV400020 |
M-N3D
Digital Microscope Head |
Zoom
range: 0.7X~4.5X; 1.3M pixel digital camera; LED light illuminator with
multi-angle functions lighting from different angles to the inspected
area, electrically controlled; Power supply: 85-256V, 50/60Hz; With
observation function of angle rotation |
|
MV491120 |
0.3X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 30mm, working distance 331mm |
MV491130 |
0.5X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 30mm, working distance 198mm |
MV491110 |
0.75X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 30mm, working distance 131mm |
MV491140 |
1X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 30mm, working distance
96mm |
MV491150 |
1.5X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 32.5mm, working distance 63mm |
MV491160 |
2X
Objective Lens |
Semi-plan
achromatic objective, outer diameter 32.5mm, working distance 46mm |
|
MV491111 |
35º
View Angle Attachment |
35º
View Angle Attachment with a 0.75X Objective Lens, for 3D
observation |
|
MV493101 |
LED
Incident Light |
High
bright LED incident light, power consumption: 1W |
|
MV193102 |
BNC-RCA
Video Cable |
1.5m
BNC to RCA Video Cable |
|
GP080101 |
BNC-BNC
Video Cable |
Length
2M (6.56ft.) |
GP080102 |
BNC-BNC
Video Cable |
Length
1M (3.28ft.) |
|
GP080106 |
BNC-S-Video
Video Cable |
1.5m
BNC-S-Video video Cable |
| Analog Microscope Video
System: 1/3" color camera, 470 lines scanning, BNC video connector.
NTSC/PAL is optional |
| Digital Microscope Video
System: 1/2" CMOS, 1.3M pixels, USB2.0, 22f/s, with cross line and
image acquisition functions |
| Zoom Range of Zoom Body: 0.7X-4.5X |
 |
| Zoom Ratio: 1:6.5 |
| Optical Magnification: 4.65X-1080X |
| Field of View: 0.3mm-77mm |
| Working Distance: 46mm-331mm |
| Video Couplers: 0.35X/0.5X(Standard)/0.75X/1X/1.5X/2X(optional) |
| Semi-plan Achromatic Objectives: 0.3X/0.5X/0.75X/1X/1.5X/2X(optional) |
| Infinity Objectives: 5X/10X/20X/50X(optional) |
| Rotary Observation: 35°Angle Attachment
with a 0.75X Objective Lens (Standard) |
| Illumination: High bright LED lights with
area control |
| Laser Pointe: wavelength 650nm |
| Input Voltage: 85-240V,
50/60Hz |
Objective
Lens |
Working
Distance
(mm) |
Couplers |
0.35X |
0.5X |
0.75X |
1X |
1.5X |
2X |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
Mag. |
FOV
(mm) |
0.3X |
331 |
4.65X-31X |
77-12 |
6X-41X |
59-9 |
9X-61X |
39-6 |
12X-81X |
29-4 |
18X-121X |
19.6-3 |
24X-162X |
14.7-2 |
0.5X |
198 |
7.8X-51X |
46-7 |
10X-68X |
35-5 |
15X-101X |
23.5-4 |
20X-135X |
17.6-3 |
31X-203X |
11.8-2 |
41X-270X |
8.8-1.3 |
0.75X |
131 |
11.6X-77X |
31-4.7 |
15X-101X |
23.5-3.6 |
23X-152X |
15.7-2.4 |
30.6X-202X |
12-1.8 |
46X-304X |
7.8-1.2 |
61X-405X |
6-0.9 |
1X |
96 |
15.5X-102X |
23-3 |
20X-135X |
17.6-2.7 |
30.6X-202X |
12-1.8 |
41X-270X |
9-1 |
61X-405X |
6-0.9 |
81.6X-540X |
4-0.7 |
1.5X |
63 |
23X-154X |
15-2.3 |
31X-203X |
11.8-1.8 |
46X-304X |
7.8-1.2 |
61X-405X |
6-0.9 |
92X-607X |
4-0.6 |
122X-810X |
3-0.4 |
2X |
46 |
31X-205X |
11.6-1.7 |
41X-270X |
8.8-1.3 |
61X-405X |
6-0.9 |
81.6X-540X |
4-0.7 |
122X-810X |
3-0.4 |
163X-1080X |
2-0.3 |
5X |
44.5 |
77.5X-510X |
4.8-0.75 |
100X-680X |
3.4-0.53 |
150X-965X |
2.29-0.36 |
200X-1360X |
1.7-0.26 |
300X-1930X |
1.14-0.18 |
400X-2720X |
0.9-0.13 |
10X |
34 |
155X-1020X |
2.4-0.37 |
200X-1350X |
1.7-0.26 |
300X-1930X |
1.14-0.18 |
400X-2700X |
0.9-0.13 |
600X-3860X |
0.57-0.09 |
800X-5400X |
0.4-0.07 |
20X |
31 |
310X-2050X |
1.2-0.19 |
400X-2700X |
0.9-0.13 |
600X-3860X |
0.57-0.09 |
800X-5400X |
0.4-0.07 |
1200X-7720X |
0.28-0.04 |
1600X-10800X |
0.2-0.03 |
50X |
20.5 |
775X-5100X |
0.48-0.07 |
1000X-6800X |
0.34-0.05 |
1500X-9650X |
0.23-0.04 |
2000X-13600X |
0.17-0.03 |
3000X-19300X |
0.12-0.02 |
4000X-27200X |
0.09-0.01 |
|
|
