digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems

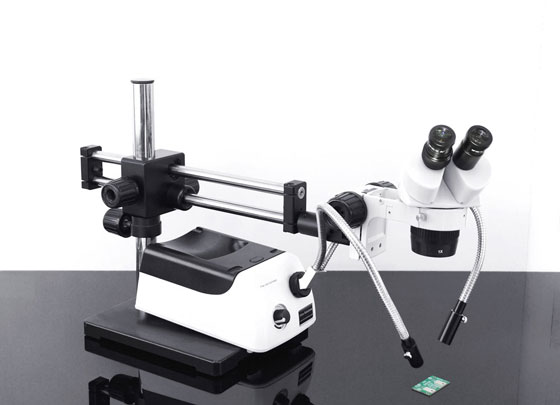

Stereo Microscope FS101101



         Description Top Of This Page

● Unilateral eyepiece diopter correction
● Vertical zoom knob
FS Stereo Microscope with the fixed dual power zoom body, wide field of view and large depth of field makes the observation much easier. The unilateral eyepiece diopter correction can ensure the users to work comfortably for long time. Different stands and illuminators are optional. FS Stereo Microscopes can be widely applied to scientific research, precision parts assembly, electronic processing and other industries.

         Product No. Top Of This Page

Picture Preview

P/N

Name

Description

FS101101

1X/3X Binocular Body 1X/3X Turret objectives, 45° inclined observation tubes with ±5 diopter adjustments (left tube). Eyepieces are not included for this item No.

FS101201

2X/4X Binocular Body 2X/4X Turret objectives, 45° inclined observation tubes with ±5 diopter adjustments (left tube). Eyepieces are not included for this item No.

SZ502101

10X Eyepieces (Pair) High-eyepoint and Wide Field 10X Eyepieces, with 20mm field of view, the tube outside dia. 30mm

SZ502103

15X Eyepieces (Pair) High-eyepoint and Wide Field 15X Eyepieces, with 15mm field of view, the tube outside dia. 30mm

SZ502104

20X Eyepieces (Pair) High-eyepoint and Wide Field 20X Eyepieces, with 10mm field of view, the tube outside dia. 30mm
         Specifications Top Of This Page
Dual Power Zoom Body: 1X/3X or 2X/4X
Optical Magnification: 10X-90X (1X/3X zoom body with different optional eyepieces and auxiliary objectives); 20X-120X (2X/4X zoom body with different optional eyepieces and auxiliary objectives)
Field of View: 3mm-20mm (1X/3X zoom body with different optional eyepieces); 2.25mm-10mm (2X/4X zoom body with different optional eyepieces)
Working Distance of Built-in 1X Objective Lens: 100mm
Interpupillary Adjustment: 54mm-75mm
Eyetube Inclination: 45°
Eyepiece Diopter Correction: ±5 Diopter for the left tube
Optional Eyepieces: 10X, 15X, 20X, 25X and 30X
Video System: 0.5X Coupler (For Trinocular Body)
         Datasheet (Optical Datasheet ) Top Of This Page
Dual Power
Zoom Body
Working
Distance
(mm)
Eyepieces
10X(Φ22mm) 15X(Φ16mm) 20X(Φ12mm) 25X(Φ11.5mm) 30X(Φ9mm)

Mag.

FOV (mm)

Mag.

FOV (mm)

Mag.

FOV (mm)

Mag. FOV (mm) Mag. FOV (mm)
1X/3X 100 10X/30X 20/6.7 15X/45X 16/5.3 20X/60X 12/4 25X/75X 11.5/3.8 30X/90X 9/3
2X/4X 20X/40X 10/5 30X/60X 8/4 40X/80X 6/3 50X/100X 5.75/2.875 60X/120X 4.5/2.25
