Description

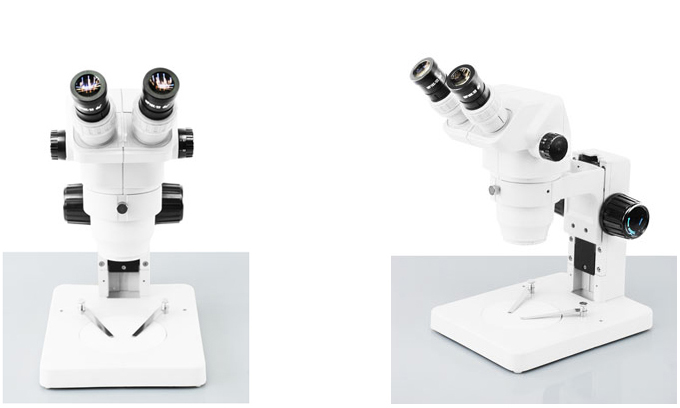

● Zoom stereo microscope
● High definition 3D images and large depth of field
● Diopter adjustment for different eye widths
● Compact design
The brand new optics design adopted in the SZ Zoom Stereo Microscope facilitates the microscope to deliver excellent flatness, good contrast and high definition images in the wide field, especially on the periphery of Field of View. The combination of compact design, long working distance and variety of functions enables SZ Zoom Stereo Microscope to be applied in precision of requirements, such as in semi-conductor and other scientific fields. The photographing sytem of SZ Zoom Stereo Microscope can be equipped with CCD cameras, digital cameras and DSLR for processing micro-image acquisition and storage, and can be widely used in teaching, scientific research, electronic inspection and test and assembly industry.

Product No.

Picture Preview	P/N	Name	Description
	SZ301101	Zoom Stereo Binocular Body	Zoom range 0.67-4.5X, zoom ratio 1:6.7, with two horizontal zoom knobs, 45º inclined observation tubes, Eyepieces and Eye Guards are not included for this item No.
	SZ301201	Zoom Stereo Trinocular Body	Trinocular Zoom range 0.67-4.5X, zoom ratio 1:6.7, with two horizontal zoom knobs, 45º inclined observation tubes, Eyepieces and Eye Guards are not included for this item No.
	SZ302101	10X Eyepieces (Pair)	High-eyepoint and Wide Field 10X Eyepieces, with 22mm field of view, the tube outside dia. 30mm
	SZ302103	15X Eyepieces (Pair)	High-eyepoint and wide field 15X Eyepieces, 16mm field of view, the tube outside dia. 30mm
	SZ302104	20X Eyepieces (Pair)	High-eyepoint and wide field 20X Eyepieces, 12mm field of view, the tube outside dia. 30mm
	SZ302105	25X Eyepieces (Pair)	High-eyepoint and wide field 25X Eyepieces, 11.5mm field of view, the tube outside dia. 30mm
	SZ302106	30X Eyepieces (Pair)	High-eyepoint and wide field 30X Eyepieces, 9mm field of view, the tube outside dia. 30mm
	SZ302201	Eye Guards (Pair)	Rubber Eyepiece Guards, for 10X High-eyepoint Eyepieces
	SZ302202	Eye Guards (Pair)	For 15X, 20X, 25X Eyepieces
	SZ302311	10X Eyepiece with Reticle	SZ302101 10X Single Eyepiece with a Reticle, single line 10mm/100 Cross Hair, 24mm Dia.
	SZ302312	10X Eyepiece with Reticle	SZ302101 10X Single Eyepiece with a Reticle, 10mm/100 Cross Line, 24mm Dia.
	SZ302313	10X Eyepiece with Reticle	SZ302101 10X Single Eyepiece with a Reticle, Cross Hair, 24mm Dia.
	SZ302314	10X Eyepiece with Reticle	SZ302101 10X Single Eyepiece with a Reticle, Net Grid 10x10mm / 10x10mm
	SZ302341	20X Eyepiece with Reticle	SZ302104 20x Single Eyepiece with a Reticle, single line 10mm/100 Cross Hair, 24mm Dia.
	SZ302342	20X Eyepiece with Reticle	SZ302104 20x Single Eyepiece with a Reticle, 10mm/100 Cross Line, 24mm Dia.
	SZ302343	20X Eyepiece with Reticle	SZ302104 20x Single Eyepiece with a Reticle, Cross Hair, 24mm Dia.
	SZ303101	0.3X Auxiliary Lens	0.3X Optics, outside dia. 49.5mm, working distance 287mm, for SZ and SZ6 Series Zoom Stereo Microscope
	SZ303102	0.5X Auxiliary Lens	0.5X Optics, outside dia. 49.5mm, working distance 177mm, for SZ Series Zoom Stereo Microscope
	SZ303103	0.75X Auxiliary Lens	0.75X Optics, outside dia. 49.5mm, working distance 117mm, for SZ and SZ6 Series Zoom Stereo Microscope
	SZ303104	1.5X Auxiliary Lens	1.5X Optics, outside dia. 49.5mm, working distance 47mm, for SZ and SZ6 Series Zoom Stereo Microscope
	SZ303105	2X Auxiliary Lens	2X Optics, outside dia. 49.5mm, working distance 26mm, for SZ and SZ6 Series Zoom Stereo Microscope
	SZ303201	Ring Adapter	Outside dia. 49.5mm, thread M48x0.75mm, with two slots for holding annular ring light, for SZ Series Zoom Stereo Microscope
	SZ303202	Cover Glass for Ring Adapter	Class with a thread for SZ Ring Adapter and Auxiliary Lens
	SZ303203	Ring Light Adapter with Cover Glass	SZ303201 Ring Adapter with an anti-dust optical glass cover, for SZ Series Zoom Stereo Microscope
	SZ304101	0.5X Video Coupler	0.5X with adjustable focus, for connecting SZ Series of Trinocular and CCD camera
	SZ304102	1X Video Coupler	1X adjustable focus, for connecting SZ Series of Trinocular and CCD camera
	SZ304103	0.35X Video Coupler	0.35X with adjustable focus, for connecting SZ Series of Trinocular and 1/3 CCD camera
	SZ306101	35mm Camera T-Mount Adapter	For connect with SZ Trinocular and a 35mm Camera, 4X Optical Photo Eyepiece inside, with a standard T-Mount adapter

Application

High-eyepoint and Wide Field 10X Eyepieces can be attached to SZ Zoom Stereo Microscope, and the continuous magnification is from 7X to 45X. Optional high-eyepoint and wide field eyepieces: 10X, 15X, 20X, 25X and 30X; Optional auxiliary lenses: 0.3X, 0.5X, 0.75X, 1.5X and 2.0X; Optional standard video couplers: 0.5X and 1X; Different eyepieces and auxiliary lenses are optional and available; The 35mm CCD camera can be attached to the True-Trinocular body by T-mount of 35mm cameras. All kinds of scope stands are optional and available.

Specifications

Zoom Range of Zoom Body: 0.67X-4.5X
Zoom Ratio: 1: 6.7
Magnification: 2X-270X
Field of View: 1mm-109.5mm
Working Distance: 26mm-287mm
Interpupillary Adjustment: 52mm-75mm
Eyetube Inclination: 45° and 60° 20° rotatable microscope head
Eyepiece Diopter Correction: ±5 Diopter
Working Distance of Built-in Objective Lens: 100mm
Optional Eyepieces: 10X, 15X, 20X, 25X and 30X
Optional Auxiliary Lenses: 0.3X, 0.5X, 0.75X, 1.5X and 2.0X
Optional Video Couplers: 0.5X and 1X (For Trinocular Body)

Datasheet (Optical Datasheet )

Auxiliary Lens	Working Distance (mm)	Eyepieces
		10X(Φ22mm)		15X(Φ16mm)		20X(Φ12mm)		25X(Φ11.5mm)		30X(Φ9mm)
		Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)
0.3X	287	2.0X-13.5X	109.5-16.3	3.0X-20.3X	79.6-11.9	4.0X-27.0X	59.7-8.9	5.0X-33.8X	57.2-8.5	6X-40.5X	44.8-6.7
0.5X	177	3.4X-22.5X	65.7-9.8	5.0X-33.8X	47.8-7.1	6.7X-45.0X	35.8-5.3	8.4X-56.3X	34.3-5.1	10X-67.5X	26.9-4
0.75X	117	5.0X-33.8X	43.8-6.5	7.5X-50.6X	31.8-4.7	10.1X-67.5X	23.9-3.6	12.6X-84.4X	22.9-3.4	15X-101X	17.9-2.7
Built-in(1X)	100	6.7X-45.0X	32.8-4.9	10.1X-67.5X	23.9-3.6	13.4X-90.0X	17.9-2.7	16.8X-112.5X	17.2-2.6	20X-135X	13.4-2
1.5X	47	10.1X-67.5X	21.9-3.3	15.1X-101.3X	15.9-2.4	20.1X-135.0X	11.9-1.8	25.1X-168.8X	11.4-1.7	30X-202X	9-1.3
2X	26	13.4X-90.0X	16.4-2.4	20.1X-135X	11.9-1.8	26.8X-180X	9-1.3	33.5X-225X	8.6-1.3	40X-270X	6.7-1
