Description

Trinocular head, WF10X/18 Eyepiece, Plan achromatic objectives:5X,10X,40X,60X, Cross table Stage size: 185X140mm, Interpupillary distance: 53-75mm, Illumination:6V 20W halogen bulb, light intensity adjustable.

Product No.

Picture Preview	P/N	Name	Description

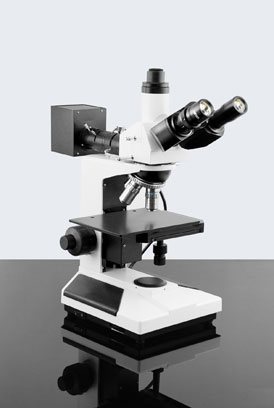

	MT1100T	Metallurgical Microscope	Trinocular head, WF10X/18 Eyepiece, Plan achromatic objectives:5X,10X,40X,60X, Cross table Stage size: 185X140mm, Interpupillary distance: 53-75mm, Illumination:6V 20W halogen bulb, light intensity adjustable
	MT112010	10X Eyepieces (Pair)	Wide Field 10X Eyepieces, with 18mm field view, the tube outside dia. 23mm. For MT1100 and MT3100 series of Microscope
	MT112050	16X Eyepieces (Pair)	Wide Field 16X Eyepieces, with 11mm field view, the tube outside dia. 23mm. For MT1100 and MT3100 series of Microscope
	MT112011	10X Eyepieces with Reticle	Wide Field 10X Eyepieces, with 0.1mm reticle, For MT1100 and MT3100 series of Microscope
	MT113220	5X Plan Achromatic Objective	5X plan achromatic design, working distance 18.3mm, N/A 0.12, for MT1100T/MT3100T
	MT113230	10X Plan Achromatic Objective	10X plan achromatic design, working distance 8.9mm, N/A 0.25, for MT1100T/MT3100T
	MT113240	20X Plan Achromatic Objective	20X plan achromatic design, working distance 8.7mm, N/A 0.40, for MT1100T/MT3100T
	MT113260	40X Plan Achromatic Objective	40X plan achromatic design, working distance 3.7mm, N/A 0.60, for MT1100T/MT3100T
	MT113270	60X Plan Achromatic Objective	60X plan achromatic design, working distance 1.34mm, N/A 0.75. for MT1100T/MT3100T
	MT113290	100X Plan Achromatic Objective	100X plan achromatic design, working distance 0.44mm, N/A1.25. for MT1100T/MT3100T (oil)
	MT116101	0.4X Coupler	0.4X, Standard C-mount design, for MT1100T Metallurgical Microscope, for MT1100T
	MT116102	1X Coupler	1X, Standard C-mount design, for MT1100T Metallurgical Microscope, for MT1100T
	MT116103	0.5X Coupler with Reticle	0.5X, Standard C-mount design, for MT1100T Metallurgical Microscope, for MT1100T
