digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
RZ Stereo Zoom Digital Microscope

RZ Series CMO Stereo Microscopes are advanced, high-performance, modular, stereo microscopes specifically designed with today's demanding microscopy applications in mind. Engineered around a common main objective and parallel optical paths, the RZ Series offers crisp, distortion-free, high-resolution images at magnifications ranging from 3.75x to 300x. Browse the optical components, photo/video accessories, and stands to configure a system to meet your needs.

The RZ features a 10:1 zoom ratio with built-in variable dual-iris diaphragms and 12 positive click stops through the zoom range. Two perpendicular columns of eight zoom lenses in four groups move in smooth motion controlled by ergonomically sized and positioned zoom knobs. A magnification indicator is conveniently located on the zoom controls.

Exterior components are painted with special anti-static finish which is especially useful when working in sensitive environments. Two types of viewing heads are available.

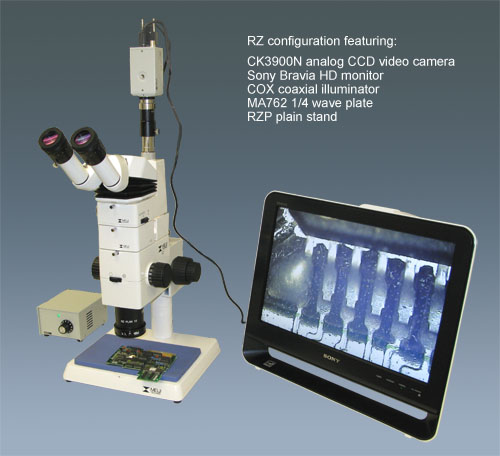

EMStereo-digital-microscope with lighted base.

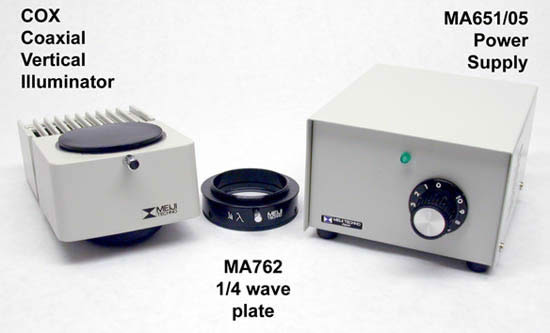

Coaxial Illumination Components

Included Filters with COX

MA754 LB100 Blue Filter
MA755 G533 Green Filter
MA756 Y48 Yellow Filter
MA757 ND2 Neutral Density Filter
MA758 ND8 Neutral Density Filter

EMStereo-digital-microscope COX

EMStereo-digital-microscope

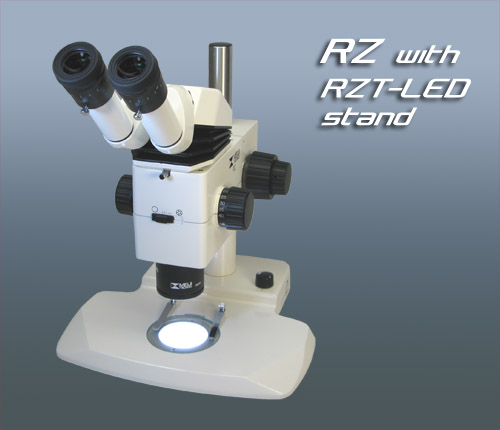

The RZ can be mounted on the RZT-LED stand for transmitted LED illumination.

  • 5w LED illuminator

  • Variable intensity control

  • Clear glass stage plate

  • Auto-voltage sensing

EMStereo-digital-microscope RZT Stand



Ergonomic Head

EMStereo-digital-microscope ergonomic head
The ergonomic head features low-positioned eyetubes with inclination adjustable from 10° to 50° and interpupillary distances adjustable from 52mm to 75mm for comfortable, fatigue-free viewing.
A wide selection of eyepieces and objective lenses offer crisp, distortion-free images over a wide range of magnifications and working distances.

A wide range of stands and accessories allows you to tailor an RZ system to your specific needs.

EMStereo-digital-microscope

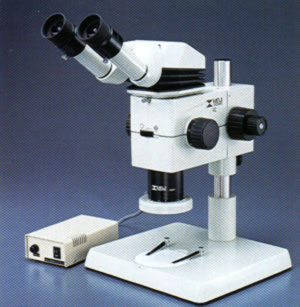

Typical RZ setup with ergo head, plain stand and MA305 Fluorescent Ring Light
EMStereo-digital-microscope Options
Options include: coaxial vertical illuminator, photo/video attachments, drawing attachment, polarizing filters, a selection of stands with built-in brightfield and brightfield/darkfield illumination, mechanical stages and much more.



 RZ Series Components & Accessories
Eyepieces

Part Number
Description
MA730
Ultra Widefield 10x Eyepieces with 25mm reticle mount, FN24, 21mm Eye Relief, 25.0mm Focal Length
MA732
Ultra Widefield 15x Eyepieces with 19mm reticle mount, FN16, 17mm Eye Relief, 16.6mm Focal Length
MA734
Ultra Widefield 20x Eyepieces with 19mm reticle mount, FN12, 12mm Eye Relief, 12.5mm Focal Length
 RZ Objectives
Part Number
Description
MA740
Plan Achromat 0.5x   Working Distance 164mm
MA741
Plan Achromat 0.75x Working Distance 101mm
MA742
Plan Achromat 1.0x  Working Distance 76mm
MA743
Plan Achromat 1.5x  Working Distance 43mm
MA744
Plan Achromat 2.0x   Working Distance 29mm
 Optional Accessories
COX
Coaxial Vertical Illuminator, requires 1/4 wave plate MA762
MA762
1/4 wave plate fits RZ Stereo Objectives
MA651/05
Transformer only, main voltage 110/115V, secondary voltage 6V 30W
MA326
Halogen lamp, 6V 30W for RZT stand and COX illuminator
MA305/100
Fluorescent Ring Light
MA308
Adapter for MA305 to fit RZ Series Objectives
MA751
Photo/video attachment with sliding 80/20 beam-splitter for attaching 35mm, polaroid, video, or digital cameras to RZ microscope
Filters - Fits COX Vertical Illuminator
MA756
Y48 Yellow filter 18mm in mount
MA754
Blue filter, LB100, 18mm in mount
MA755
G533 Green filter, clear, 18mm in mount
MA757
ND2 Neutral density filter 18mm in mount
MA758
ND8 Neutral density filter 18mm in mount
