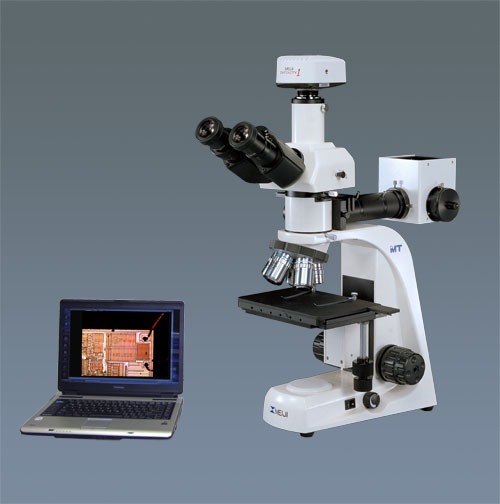

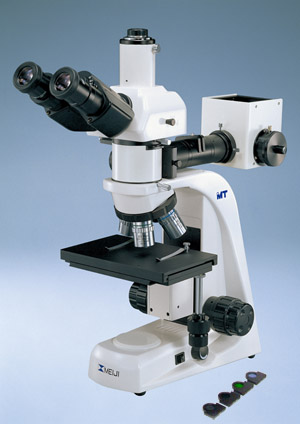

Meiji Techno's new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio. The MT7500 Series features include:

• Computer Aided Design
• Ergonomically positioned controls
• Comfortable Siedentopf viewing head
• 50W Vertical Koehler Illuminator with auto sensing power supply
• Incident Light Brightfield/Darkfield and Simple Polarized Light observation modes
• Optional Ergonomic binocular viewing head available

VIEWING HEADS

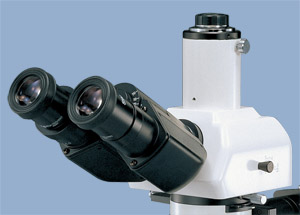

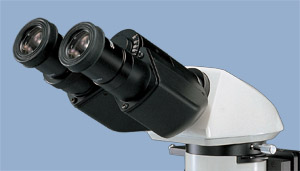

Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.





OBJECTIVE CHANGER

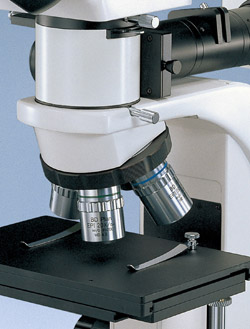

The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.



OBJECTIVES

Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield/Darkfield observation.

STAGE

Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm and travels: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.

ILLUMINATION
