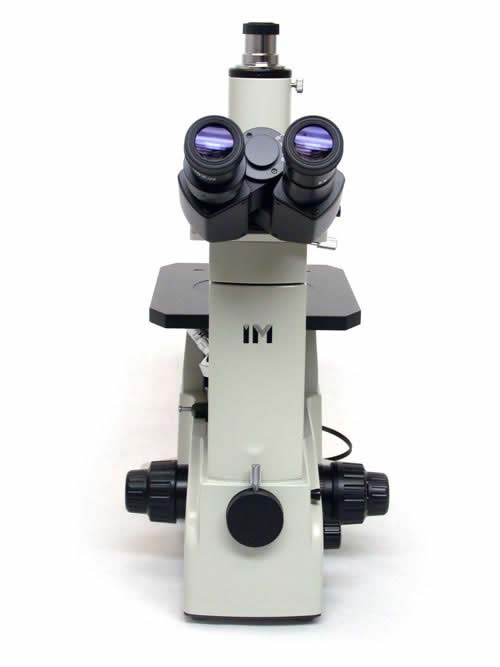

Evaluation of metallurgical specimens is fast and easy with Meiji Techno's IM7000 Inverted Metallograph. The IM7000 delivers an excellent performance-to-cost ratio because it has the features and versatility that one would expect to find in more expensive instruments. The IM7000 has an integrated front mounted camera port with adapters available for 35mm, CCD, CMOS and other cameras.

VIEWING HEADSEMStereo-digital-microscope IM-7000

The binocular model, the IM7100, incorporates the MA814 Siedentopf-type binocular head while the trinocular model, the IM7200, has the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photomicroscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm. An optional ergonomic binocular head is also available.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.


OBJECTIVE CHANGER

The smooth-operating, ball bearing, angle mounted quintuple nosepiece provides effortless objective changes.



OBJECTIVESEMStereo-digital-microscope

Meiji Techno offers their newly designed E.Planachromat Infinity Corrected objectives for brightfield observation modes. Infinity tube lens: F = 200mm.



STAGE

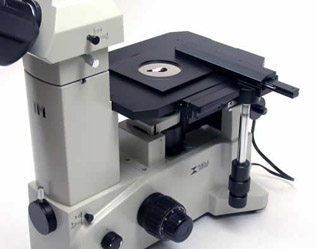

The standard fixed plain stage measures 180mm(x) by 245mm(y). The optional attachable mechanical stage measures 112mm(x) x 71mm(y). The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.



ILLUMINATOR

A powerful Koehler method vertical illuminator with 6 volt 30 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations and adjustable brightness control.

 IM7000 Series Ordering Information
Model
Head Type Eyepieces Objectives Stage Illumination
IM7100
Bino.
Brightfield
SWH 10x FN22
Planachromat E5X
Planachromat E10X Planachromat E20X Planachromat E50X
Fixed flat-top
180mm X 245mm
Koehler Vertical
6 volt 30 watt halogen
IM7200
Trino.


 IM7000 Series Components & Accessories
Eyepieces
Part Number
Description
MA817
SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard)
MA818
SWH15X  Super Widefield High Eyepoint eyepiece, FN16 (optional)
MA819
SWH20X  Super Widefield High Eyepoint eyepiece, FN12 (optional)
MA859
SWH10X-F Super Widefield High Eyepoint focusing eyepiece, FN22 (optional)
Brightfield Objectives - Planachromat - Infinity Corrected (F=200mm)
MA870
Planachromat E5X objective, NA: 0.10, Working Distance = 20.00mm (standard)
MA871
Planachromat E10X objective, NA: 0.25, Working Distance = 7.48mm  (standard)
MA872
Planachromat E20X objective, NA: 0.40, Working Distance = 5.20mm (standard)
MA873
Planachromat E50X objective, NA: 0.75, Working Distance = 0.38mm  (standard)
MA874
Planachromat E100X objective, NA: 0.90, Working Distance = 0.34mm (optional)
Miscellaneous Parts & Optional Accessories
MA814
Siedentopf Binocular Head
MA816/10
Siedentopf Trinocular Head
MA957/15
Siedentopf type ergonomic binocular head, 10 - 50 degrees adjustable vertical inclination, 30mm I.D. eyetubes (optional)
MA877
C-Mount Adapter for front port IM7000 Series (no lens, port has 0.66x mag factor)
MA475/05
LB100 Blue Filter in 20mm diameter in mount (included)
MA476
G533 Green Filter in 20mm diameter in mount (included)
MA774
ND50 Neutral Density filter in 20mm in mount (included)
MA497
Polarizing Filter, 20mm diameter in mount (included)
MA868
Digital camera adapter for non "C" mount type cameras (52mm O.D. thread),
for front camera port (Requires additional DC adapter ring for your specific model camera. Please contact us for the exact DC ring part.)
MA875
Optional Mechanical Stage 112mm(X) by 71mm(Y) with right handed coaxial drop down controls (MA876 required)
MA876
Replacement Metal Insert for Stage
MA809
Replacement AC Powercord 115VAC (USA)
MA326
Spare halogen bulb, 6 volt 30 watt
MA327
Replacement 3A Fuse
MA907
Dust Cover (included)
