YSC Meiji Inverted Biological Microscope TC5000


Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.


VIEWING HEADS

Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm. An optional ergonomic binocular head is also available.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER

The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES

Meiji Techno offers an assortment of newly designed Planachromat Infinity Corrected objectives for Brightfield, Phase Contrast and Fluorescence Microscopy.

STAGE
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1" X 3" glass slide holder, Hemacytometer holder. Slide, chamber, and petri dish holding plates of various sizes are available separately.

Photo showing TC Series
Model TC5300 with MA380/05 mechanical stage
Click HERE for Stage Plate Information.

Model TC5400
with MA380/05 mechanical stage

CONDENSER
The standard condenser has a working distance of 73mm.

ILLUMINATOR

A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.

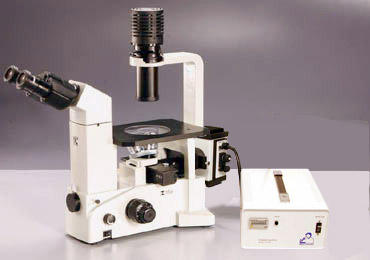

Model TC5500
 TC Series Brightfield and Phase Contrast Models
Model
Head Illumination Eyepieces Objectives Stage Condenser
TC5100 Brightfield
Bino.
Koehler w/o iris 6V 30W halogen
SWH10X
FN22
Quintuple Nosepiece w/LWD 10X &
LWD 20X
Plain Fixed Stage
180mm X 247mm
TC Condenser
WD 73mm
NA 0.30orTC Condenser2 WD 20.5mm
NA 0.55
TC5200 Brightfield
Trino.
TC5300 Phase Contrast
Bino.
Koehler w/o iris
with phase slider 6V 30W halogen
Quintuple Nosepiece
LWD TCPlan Ph10X
LWD TCPlan Ph20X
TC5400 Phase Contrast
Trino.
 TC Series Epi-Fluorescence Models
Model
Head Eyepieces Objectives Stage Condenser Illumination
TC5500
Bino.
SWH10X FN22
Quintuple Nosepiece
TC Planachromat
F10X, F20X
Plain Fixed Stage
180mm X 247mm
TC Condenser WD 73mm
NA 0.30
or
TC Condenser2 WD 20.5mm
NA 0.55

100W Mercury + Koehler w/o iris   6V 30W halogen

TC5600
Trino.
* Centering telescope is included with models TC-5300, TC-5400, TC-5500 & TC5600.
 TC Series Components & Accessories
Eyepieces
Part Number
Description
MA817
SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle)
MA818
SWH15X  Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle)
MA819
SWH20X  Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle)
MA859
SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle)
Brightfield Objectives - Planachromat - Infinity Corrected - F = 200mm
MA820
TC Planachromat 4X objective ∞/1.0, NA: 0.13, Working Distance = 17.3mm
MA821
TC Planachromat 10X objective ∞/1.0 , NA: 0.25, Working Distance = 7.6mm
MA822
TC Planachromat 20X, objective ∞/1.0  NA: 0.40, Working Distance = 7.0mm
MA823
TC Planachromat 40X objective ∞/1.0 , NA: 0.65, Working Distance = 2.8mm
Phase Contrast Objectives - Planachromat - Infinity Corrected - F = 200mm
MA825
TC Planachromat Phase 4X objective ∞/1.0, NA: 0.13, Working Distance = 17.3mm
MA826
TC Planachromat Phase 10X objective ∞/1.0, NA: 0.25, Working Distance = 7.6mm
MA827
TC Planachromat Phase 20X objective ∞/1.0, NA: 0.40, Working Distance = 7.0mm
MA828
TC Planachromat Phase 40X objective ∞/1.0,  NA: 0.65, Working Distance = 2.8mm
Epi-Fluorescent Objectives - Planachromat - Infinity Corrected - F = 200mm
MA849
TC Planachromat F4X objective ∞/1.0, NA: 0.13, Working Distance = 17.5mm
MA850
TC Planachromat F10X objective ∞/1.0, NA: 0.30, Working Distance = 7.5mm
MA851
TC Planachromat F20X objective ∞/1.0, NA: 0.40, Working Distance = 7.5mm
MA852
TC Planachromat F40X objective ∞/1.0,  NA: 0.60, Working Distance = 2.9mm
Accessories
MA861
Green interference filter in 51mm mount (546nm)
MA863
Cobalt clear filter in 51mm mount
MA856
Blue filter, LB100, in 51mm mount
MA857
Green filter, G533, in 51mm mount (533nm)
MA858
ND25 Neutral density filter for brightfield or phase contrast, in 51mm mount
Epi-Fluorescent Parts & Accessories
TC-FL
Fluorescent Illuminator Attachment
FL-LHJ
Lamphouse for 100W Mercury Lamp
FL-PWJ
Power supply for Lamphouse
BA005
Replacement Mercury Lamp HBO 100W/2
MA865
Basic Blue Excitation Filter set
MA866
Basic Green Excitation Filter set
TC-RF36
UV Protection Filter
MA196
ND50 Neutral density filter for epi-illuminator (optional)
MA197
ND13 Neutral density filter for epi-illuminator (optional)
MA860
ND25 Neutral density filter for epi-illuminator (included with TC5500, TC5600)
Miscellaneous Parts & Accessories
MA814
Siedentopf type binocular head, 30 degree inclination, 30mm I.D. eyetubes (TC5100, TC5300 & TC5500)
MA816/10
Siedentopf type trinocular head, 30 degree inclination, 30mm I.D. eyetubes (TC5200, TC5400 & TC5600)
MA957/15
Siedentopf type ergonomic binocular head, 10 - 50 degrees adjustable vertical inclination, 30mm I.D. eyetubes (optional)
MA853
TC Condenser, N.A. 0.30, working distance 73mm (included)
MA854
Optional TC Condenser, N.A. 0.55, working distance 20.5mm (for use with 40X phase objective)
MA868
Digital camera adapter for non "C" mount type cameras (52mm O.D. thread),
for front camera port (Requires additional DC adapter ring for your specific model camera. Please contact us for the exact DC ring part.)
MA877
C-Mount Adapter for CCD/CMOS camera, for front port TC Series (no lens, port has 0.66x mag factor)
MA380/05
Optional Mechanical Stage, movement: 112mm(X) x 72mm(Y) with drop down coaxial controls. (Requires at least one "holder" listed below. The most common for glass slides and hemocytometers would be MA378.)
MA378
Glass Slide Holder for 1" X 3" slides and Hemocytometer holder, fits MA380/05
MA383
Chamber holder, fits MA380/05
MA864
Terasaki plate holder, fits MA380/05
MA384
Petri Dish Holder for 35mm diameter dishes, fits MA380/05
MA385
Petri Dish Holder for 55mm diameter dishes, fits MA380/05
MA387
Petri Dish Holder for 65mm diameter dishes, fits MA380/05
MA326
Replacement halogen bulb 6V 30W
MA809/10
Replacement AC Power cord with plug 115VAC (USA)
MA855
Phase Contrast Slider (included in Phase Contrast models)
MA458/05
Centering Telescope for phase contrast, O.D.= 30.0mm (included in PC models)

Photos of epi-fluorescence mode made from Chroma Demo Slide, Nikon Coolpix Camera and TC5500 front camera port.
