Picture Preview |
P/N |
Name |
Description |
|

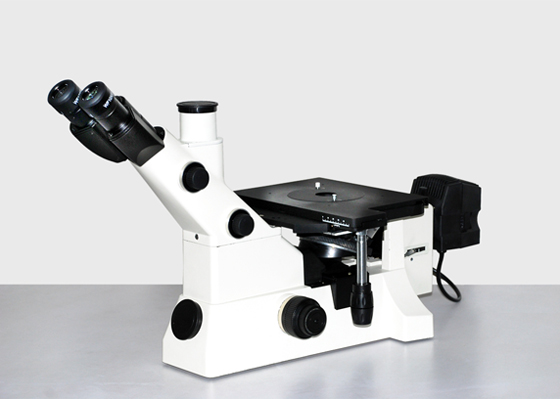

MT3200T |
Inverted
Metallurgical Microscope |
Infinity
optical system, Wide field eyepiece WF10X/22mm, Quintuple nosepiece,
Infinity long working distance plan objectives 5X, 10X, 20X, 50X, 100X.
Stage size: 226mm X 178mm, Travel 40 x 40mm. Provides both the Bright
Field and Dark Field, D.I.C. for optional |
|
MT323102 |
5X
Plan Achromatic Objective |
5X
Infinity, NA.: 0.12, for 3200T series Microscope |
MT323103 |
10X
Plan Achromatic Objective |
10X
Infinity, NA.: 0.25, for T3200T series Microscope |
MT323104 |
20X
Plan Achromatic Objective |
20X
Infinity, NA.: 0.4, for MT3200T series Microscope |
MT323105 |
50X
Plan Achromatic Objective |
50X
Infinity, NA.: 0.75, for MT3200T series Microscope |
MT323107 |
100X
Plan Achromatic Objective |
100X
Infinity, NA.: 0.9, for MT3200T series Microscope |
|
MT323111 |
Illumination
Adjustment Objective |
For
adjusting the center of the Illuminator |
|
MT326101 |
0.5X
CCD Adapter |
0.5X,
Standard C-mount design, for MT3200T Metallurgical
Microscope |
|
MT327101 |
D.
I. C. |
Differential
interference contrast part, 3 types of plates for option |
