digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
HD102 HD High Definition 800p Digital Microscope 3x—762x

  • HD102-BS
  • HD102-US
  • HD102-AB





The YSC HD102 is a powerful HD high definition digital microscope that uses advanced high definition digital camera technology to deliver full 800p resolution in HD quality and full motion video at 60 frames per second with no lag time on a 10" HD monitor. The HD102 has a magnification range of 3x—762x. It can be customized with various camera, lighting, stand, software, and measurement options.

The lens offers superior resolution with internal focus and iris adjustments. The detent click stop is available for video measurement applications, and the non detent click stop version is also available for general applications. For bright field coaxial lighting application, customers can configure lens with an internal coaxial lighting port. Various cameras (color, CCD, USB megapixel from 1.3MP—32MP), VGA output, HDMI output, Internal SD memory and HD high definition), lighting (LED, halogen and fluorescent) and stand options can be configured for your system.

The HD102 is integrated with the HD100 camera, which can capture image (1280x800) directly onto a SD card. No com- puter is required.



HD102 Benefits

✓ High Definition HD 800p digital microscope
✓ Healthy Ergonomics: Less eye fatigue and neck stress
✓ Great Depth of Field
✓ Long Working Distance Options Available
✓ Adjustable Viewing Angles (with tilting stand option)
✓ Real Time Full Motion (HD800p 60fps)
✓ HD Video Display
· 10" HD monitor for discussion or training purposes
· Save images with 1280x800 resolution to SD card
· HD video motion can be recorded with other systems
· Wide zoom ratio with constant focus
· Full camera, lens and lighting adjustments
· XY measurement stage options available
· Internal SD card for direct image capture (NO computer needed)
· Different stand options
· Adjustable high intensity LEDs
· Internal Coaxial Lighting Option
· Fluorescent or halogen lighting options
· Measurement software option with other digital microscopes

HD102 Application

· Assembly
· Production
· Quality Control
· Failure Analysis
· Process Control
· Measurement
· SMT
· Electronics
· Medical Device
· Machining
· Aerospace
· Natural Science
· Training
· Documentation

HD100 Camera

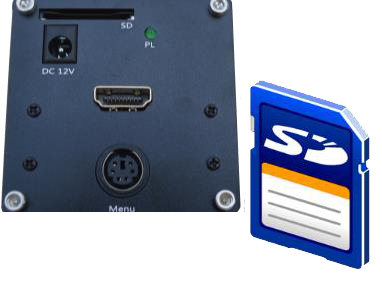

Simultaneous HDMI output for viewing and still image capture to SD. NO computer needed. Images can be transferred to computer via SD card reader. (Back view) HDMI, SD card slot, DC 12V in, SD card slot, LED light 800p 60 fps Full Motion Video
✔ Excellent resolution and frame rate for full motion HD High Definition video display without any lag time.
XY Measurement Stage XY Stage
Universal Stand & 10" HD Monitor XY Measurement Stage and 10" HD Monitor
Adjustable High Intensity LEDs with Diffuser Plate Articulating Head Feature
Laser Pointer Option Articulating Arm Stand

HD102 Technical Specifications 3x-762x Possible Range


Camera Specifications

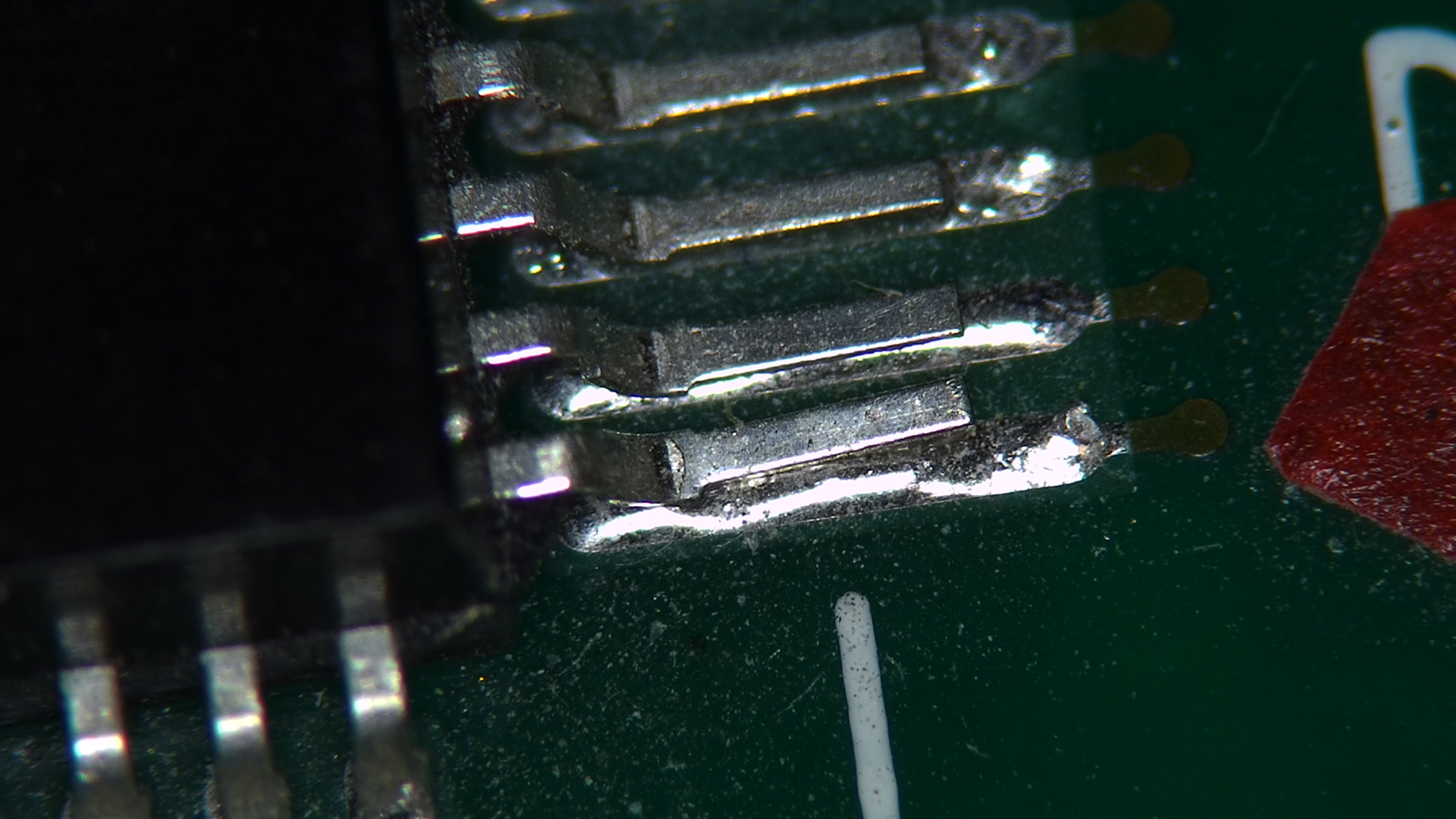

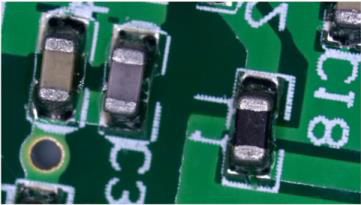

Actual images are captured at 6 megapixels (3264x1836). Click the thumbnail to expand.
