HD101 HD High Definition 800p Digital Microscope 2x—51x or 4x —102x

  • HD101LAB (2x-51x) 1280x800 60fps HD Digital MicroscopeIntegrated 10" HD Monitor including LED lighting and Articulating Arm Stand. 10" Monitor viewing angle can be adjusted
  • HD101LUS (2x-51x) 1280x800 60fps HD Digital MicroscopeIntegrated 10" HD Monitor including LED lighting and Universal Stand. 10" Monitor viewing angle can be adjusted
  • HD101LBS (2x-51x) 1280x800 60fps HD Digital MicroscopeIntegrated 10" HD Monitor including LED lighting and Basic Stand. 10" Monitor viewing angle can be adjusted. HD101LBSBL-Basic Stand has Back Lighting Option





The HD101 is the ultimate digital microscope with a 10" HD monitor and using the most ad-vanced high definition digital camera technology to deliver full 800p resolution in HD quality and full motion video with no lag time. The HD digital microscope offers a magnification of 2x-51x with a long working distance of 4.5"-12", which is ideal for assembly, inspection, training, real-time viewing, and documentation. An optional 2x lens can be used to increase the magnification up to 102x. The HD100 high definition digital camera has an HDMI output to 10 inch HD monitor and a SD card for direct image capture. Still images can be saved in 1280x800. No computer is needed for image capture.

This HD High Definition digital microscope can be configured with various stands, measurement, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Diffuser lighting can be used to reduce glare from highly reflective parts. The polarizer lighting and dual arm goose arm lighting options are also available for this HD digital microscope. The optional laser light pointer is great for locating the inspection area. XY measure-ment stages are also available with this HD digital microscope. Measurement software is available with other digital microscope systems.

HD101 Benefits

✓ High Definition HD 800p digital microscope
✓ Healthy Ergonomics: Less eye fatigue and neck stress
✓ Great Depth of Field
✓Long Working Distance: 4.5" to 12"
✓ Adjustable Viewing Angles (0 to 90 degrees)
✓ Real Time Full Motion HD800p 60fps
✓ HD Video Display
✓ SD Card for Image Capture
· 10" HD monitor for discussion or training purposes
· Save images with 1280x800 resolution to SD card
· HD video motion can be recorded with other systems
· Wide zoom ratio with constant focus
· Full camera, lens and lighting adjustments
· XY measurement stage options available
· Internal SD card for direct image capture (NO computer needed)
· Different stand options
· Adjustable high intensity LEDs with diffuser plate
· Laser Pointer Option
· Fluorescent or halogen lighting options
· Measurement software option with other digital micro-scopes

HD101 Application

· Assembly
· Production
· Quality Control
· Failure Analysis
· Electronics
· Medical Device
· Machining
· Aerospace
· Natural Science
· Training
· Documentation

HD100 Camera

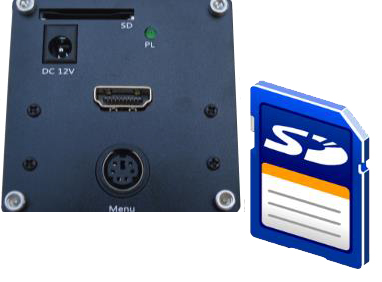

Simultaneous HDMI output for viewing and still image capture to SD. NO comput-er needed. Images can be transferred to computer via SD card reader. (Back view) HDMI, SD card slot, DC 12V in, SD card slot, LED light 800p 60 fps Full Motion Video
✔ Excellent resolution and frame rate for full motion HD High Definition video display
without any lag time.
XY Measurement Stage XY Stage
Adjustable High Intensity LEDs with Diffuser Plate XY Measurement Stage and 10" HD Monitor
Universal Stand & 10" HD Monitor Articulating Head Feature

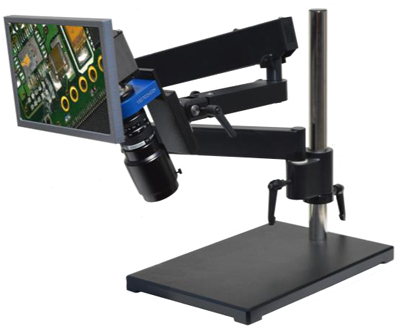

Laser Pointer Option Articulating Arm Stand

HD101 Technical Specifications

Working  Distance

Field  of  View
(Diagonal)

Video  Mag.
with 10" Monitor

Low  Mag.

High  Mag.

Low  Mag.  *

High  Mag.  *

4.5"

30  mm

5  mm

9x

51x

1.2"

0.2"

5"

36  mm

6.1  mm

7x

42x

1.4"

0.2"

6"

47  mm

8.1  mm

7x

40x

1.9"

0.3"

8"

65  mm

11.5  mm

5x

29x

2.6

0.5"

10"

85  mm

15  mm

4x

22x

3.3"

0.6"

12"

103  mm

18  mm

2x

14x

4.1"

0.7"

* HD101h magnification range is 4x102x

Camera Specifications

Mount  Type

 C-mount

Sensor

 1/3”  CMOS  sensor

Live  Video

 HDMI  800p  60  fps  output

Resolution

 Live HD resolution 1280x800 60 fps
 Still image capture resolution 1280x800

Output

 HDMI,  SD Memory Card

Settings

 Parameter adjustment (1): Exposure, White balance, Gamma, Gain, Sharp-ness, Saturation, Contrast




Actual images are captured at 6 megapixels (3264x1836). Click the thumbnail to expand.
