CC-Smart Cam Digital Color Camera with Resident Basic Measurement Capability
Features:
- Wide screen format with No Distortion
- High resolution
- Resident basic manual measuring capability; No computer required; connects directly to a monitor
- Perfect for production or quick convenient measurement
- Measurement features: lines / distances; circles; arcs; squares; polygon perimeters; angels; center to center distances
- English and Metric units
- PS/2 Mouse control for manual measurement and feature selection
- Storage for up to six magnification calibration files
- Image adjustment for: exposure; contrast; R G B; auto exposure; white balance
- Capture image on SD card by remote trigger
- SD/USB 2.0 Dual Interface 2GB memory card included
Specifications:
- Sensor: CMOS; 1/2”
- Resolution: 1440 x 900, 16:9 Aspect Ratio
- Pixel count: 1.3 mega pixel
- Video Output: Standard DB-15 VGA
- Color: RGB (individual adjustment)
- White balance: auto/manual
- Exposure: auto/manual
- Contrast: manual
- Capture mode: remote trigger
- Memory slot: SD Card reader (2GB or lower)
- Memory card: SD/USB 2.0 Dual-Interface 2GB card included
- Lens mount: C-Mount
- Power: 5 VDC/2A; adapter included
- Camera size: L: 75; W: 65; H: 63 mm
- Camera weight: 300g

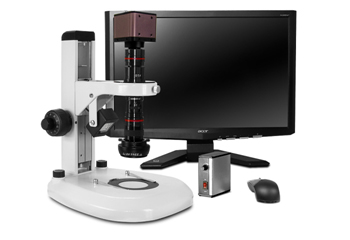

MZ7-DSTL2-SC CC-Smart Cam Package, on a CMO-DST-L2, Dual Illumination Track Stand
Package Includes:
- CC-Smart Cam as above
- MZ7 Micro Zoom Lens, with MZ7-CP-05, standard; 25 - 157x magnification, approximate
- IL-LED-R1E High Intensity 6 point UV-Free LED Ring Light with intensity control
- CC-LCD-22W 22” Color Wide Screen Monitor
- CMO-ST-L2, Dual Illuminated Track Stand, Top and Back illumination
- System does not include a glass master
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Note: Specifications are subject to change without notice.
|
