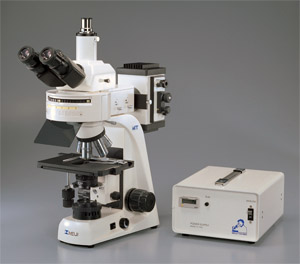

YSC Meiji Biological Microscope MT6000
|
|
|
 |
| |
 Meiji Techno's new
laboratory grade upright microscopes are the new MT6000 Series
Biological with Epi-Fluorescence. The MT6000 Series employs Meiji
Techno's all new ICOS™ (Infinity Corrected Optical System) making
the study of mounted specimens fast and easy while delivering an excellent
cost-to-performance ratio.
The MT6000 Series microscopes
are configured for brightfield and epi-flourescence but can
also be outfitted with optional phase contrast, polarized light and
darkfield components. System modularity makes purchase and operation
very affordable for colleges, universities, researchers and
clinics. |
|
MT6000 Series features include:
- Computer Aided
Design Frame and Optics
- Ergonomically
positioned controls
- Comfortable
Siedentopf Viewing Heads
- Six
Position Fluorescence Module with three filter positions
included
- Newly Designed Semi
Apo Plan Fluor Objectives
- Brightfield,
Darkfield, Phase Contrast, Polarized Light and Epi-Fluorescence
modes
- 30W Halogen
Transmitted Koehler + 100W Mercury Epi Module
- Optional
Ergonomic Binocular Viewing Head
available
|
VIEWING HEADS
 Model MA815 is the Siedentopf-type binocular head
and MA816 is the trinocular head for camera integration. Each head has the
eyetubes inclined at 30 degrees with the left eyetube having graduated
diopter settings. The interpupillary distance is adjustable between 53mm -
75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for
photo-microscopy; 100% to eyetubes or 80% to phototube & 20% to the
eyetube. The optional Ergonomic Viewing Head has the inclination
adjustable from 10 to 50 degrees to fit any user.
EYEPIECES
10X Super Widefield High Eyepoint
eyepieces F.N.22 are standard, and 15X and 20X eyepieces are also
available as an option. A Super Widefield High Eyepoint 10X focusable
eyepiece that accepts 25mm reticules is also available.
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece
provides effortless objective changes.
OBJECTIVES
Meiji Techno offers an all new assortment of
Infinity Corrected Semi Apochromat objectives for Fluorescence Microscopy
and U.Plan Objectives for Brightfield/Darkfield, Phase and Polarized
work.
STAGE
Ceramic
coated flat top stage measures 191mm x 126mm with 100mm x 100mm x-y
travel. Ergonomically positioned left or right-handed coaxial drop down
controls.
 CONDENSER
Abbe condenser NA 1.25
with iris in dovetail mount is included. Optional condenders include a
Zernike Phase Contrast Condenser NA 1.25 with iris in dovetail mount and
darkfield condenser with dovetail mount.
ILLUMINATION
A powerful 6V, 30W
halogen lamp provides enhanced image quality and brightness for the

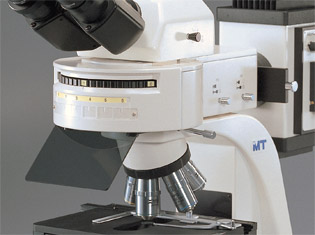

observation of specimens. The standard Modular Six Position
Epi-fluorescent illuminator employs a 100 watt mercury lamp and standard
power supply. The optional Opti-Quip lamphouse includes a fully adjustable
power supply that accommodates various Mercury, Xenon and hybrid lamp
combinations.
PRIOR
LUMEN 200 ILLUMINATOR
Available upon
request, the Prior Lumen 200 is a powerful, cost effective
alternative to standard 100 Watt mercury and halogen lamphouses. The
combination of Prior's proprietary 2,000 hour life, 200 watt metal
arc lamp and two or three meter liquid light guide provide
unrivalled versatility and illumination power.
Designed to
mount remotely via a two or three meter liquid light guide, the
Lumen 200 eliminates heat transfer to the microscope, minimizing
thermal drift and aiding image stability in long term
experiments.
PHOTOMICROGRAPHY
For
photomicrography, the CC1400C
Peltier Cooled CCD camera offers outstanding image quality and
value for industrial and scientific imaging applications. This
model is ideal in low-light conditions and where high dynamic range
is required.
Another option,
the CC1400UC,
is an ultra-sensitive 1.4 megapixel camera that was built in
response to customer requests for a cost-effective low light
fluorescence solution. It employs the well-known Sony ICX285 imager
with a large 2/3” diagonal sensor, and is available in either color
or monochrome. Providing near perfect color reproduction for a wide
range of applications without the high price associated with
similar cameras, the CC1400UC is an excellent complement to the
CC1400C.
The MA151/35/20 "C" mount adapter allows mounting of these cameras to the MT6300H
trinocular tube.
|
MT6000
Series Epi-Fluorescent Models
Model |
Head |
Eyepieces |
Objectives |
Stage |
Condenser |
Illumination |
MT6200H |
Bino. |
SWH10x
FN22 |
Semi Apochromat
F10X, F20X, F40X, F100X |
Ceramic Coated Fixed
flat-top |
Abbe NA 1.25 with iris
in dovetail mount |
Incident 100W Mercury
+ Transmitted Koehler 30W halogen |
MT6300H |
Trino. |
|
Installed Filter
Sets included with MT6000 Series
Microscopes |
| Filter
Set |
Excitation
Filter
25mm diameter |
Dichroic
Filter
25.7mm x 36mm |
Emitter
Filter
25mm Diameter |
Primary Applications |
Blue
Chroma
P/N:
11001v2 |
D 470/40x |
495
DCLP |
E515LPv2 |
Acridine
Orange (both DNA & RNA), Auramine, EGFP, FITC, S65T,
RSGFP |
Green
Chroma
P/N:
11002v2 |
D546/10x |
565 DCLP |
E590LPv2 |
Rhodamine
237, RH414, RH421, RH795, LDS751,TRITC, Proqidium Iodine, RFP |
UV
Chroma
P/N
31000v2 |
D360/40x |
400DCLP |
D460/50m |
DAPI,
Hoechst 33342, Hoechst 34580, AMCA, others |
MT6000 Series Components &
Accessories
|
Viewing Heads |
Part
Number |
Description |
| MA815 |
Siedentopf type binocular
head. 30 degree inclination, 30.0mm ø eyetubes.
(MT6200H) |
| MA816 |
Siedentopf type trinocular
head. 30 degree inclination, 30.0mm ø eyetubes.
(MT6300H) |
| MA957 |
Siedentopf ergonomic
binocular head. 10 - 50 degree adjustable inclination, 30.0mm ø eyetubes.
(optional) |
Eyepieces |
Part
Number |
Description |
| MA817 |
SWH10X Super Widefield High
Eyepoint eyepiece 30.0mm ø, FN22 (included) (accepts 25mm
reticle) |
| MA818 |
SWH15X Super Widefield
High Eyepoint eyepiece 30.0mm ø, FN16 (optional) (accepts 19mm
reticle) |
| MA819 |
SWH20X Super Widefield
High Eyepoint eyepiece 30.0mm ø, FN12 (optional) (accepts 19mm
reticle) |
| MA859 |
SWH10X-F Super Widefield
High Eyepoint focusing 30.0mm ø, FN22 (optional) (accepts 25mm
reticle) |
Optional U.Plan Brightfield Objectives - Infinity
Corrected - F = 200mm |
| MA830 |
U.Planachromat 2.5X
objective, NA: 0.07, WD = 5.7mm (optional) |
| MA831 |
U.Planachromat 4X objective,
NA: 0.10, WD = 25.9mm (optional) |
| MA832 |
U.Planachromat 10X,
objective, NA: 0.25, WD = 10.7mm (optional) |
| MA833 |
U.Planachromat 20X,
objective, NA: 0.40, WD = 7.29mm (optional) |
| MA834 |
U.Planachromat 40X
objective, NA: 0.65, WD = 0.5mm (optional) |
| MA835 |
U.Planachromat 50X oil,
objective, NA: 0.87, WD = 0.28mm (optional) |
| MA837 |
U.Planachromat 100X oil
objective, NA: 1.25, WD = 0.23mm (optional) |
Optional U.Plan Phase Contrast Objectives - Infinity
Corrected - F = 200mm |
| MA839 |
U.Planachromat Ph 10X
objective, NA: 0.25, WD = 10.7mm (optional) |
| MA840 |
U.Planachromat Ph 20X
objective, NA: 0.25, WD = 7.29mm (optional) |
| MA841 |
U.Planachromat Ph 40X
objective, NA: 0.65, WD = 0.5mm (optional) |
| MA842 |
U.Planachromat Ph 100X oil
objective, NA: 1.25, WD = 0.23mm (optional) |
Optional U.Plan Darkfield Objectives with Iris - Infinity
Corrected - F = 200mm |
| MA836 |
U.Planachromat 50X oil with
iris objective, NA: 0.87, WD = 0.28mm (optional) |
| MA838 |
U.Planachromat 100X oil with
iris objective, NA: 1.25, WD = 0.23mm (optional) |
Epi-Fluorescent Objectives - Infinity Corrected - F = 200mm |
| MA844 |
Semi Apochromat F10X
objective, NA: 0.40, WD = 1.0mm (included) |
| MA845 |
Semi Apochromat F20X
objective, NA: 0.65, WD = 0.7mm (included) |
| MA846 |
Semi Apochromat F40X
objective, NA: 0.82, WD = 0.15mm (included) |
| MA848 |
Semi Apochromat F100X oil
objective, NA: 1.25, WD = 0.2mm (included) |
Condensers |
| MA910 |
Abbe Condenser, N.A. 1.25
with iris in dovetail mount (included) |
| MA910/10 |
Abbe NA 1.25 Condenser with centerable phase annuli in slider for use with 20x
and 40x phase objectives, with iris diaphragm in dovetail mount.
(optional) |
| MA910/15 |
Abbe NA 1.25 Condenser with darkfield stop in slider for use with 20x and 40x
brightfield objectives, with iris diaphragm in dovetail mount.
(optional) |
| MA911 |
Achromatic Condenser, N.A.
1.25 with iris in dovetail mount (optional) |
| MA913 |
Six Position Zernike Phase
Contrast Condenser, N.A. 1.25, darkfield stop & blocking stop with
iris in dovetail mount (optional) |
| MA914 |
Darkfield Oil Immersion
Condenser, N.A. 1.25 with iris in dovetail mount
(optional) |
| MA976 |
Abbe condenser NA 1.25
with swing-out top lens and iris diaphragm in dovetail mount.
For use with low power scanning objective, MA830.
(optional) |
Filters |
| MA860 |
Neutral density filter,
29.8mm in mount (fits epi-illuminator, included) |
| MA861/05 |
Green interference filter
40mm un-mounted (546nm) |
| MA856/05 |
Blue filter, LB100, 40mm
un-mounted |
| MA857/05 |
Green filter, clear, 40mm
un-mounted |
| MA858/05 |
ND25 Neutral density filter,
40mm un-mounted (transmission: 25%) |
| MT-RF47 |
UV Protection filter
(included) |
Standard
Epi-Fluorescent Parts & Accessories |
| MT-FL |
Modular Six Position
Fluorescent Illuminator Attachment includes 3 Fluorescence Filter Sets
listed above (included) |
| TC-LH-J |
Meiji Techno Lamphouse for
100W Mercury Lamp (included) |
| FL-PW-J |
Meiji Techno Power supply
for Lamphouse (included) |
| BA-005 |
Replacement Mercury Lamp HBO
100W/2 (one included) |
| MA865/05 |
Basic Blue Excitation Filter
set (Position #1) (included) |
| MA866/05 |
Basic Green Excitation
Filter set (Position #2) (included) |
| MA867/05 |
Basic UV Excitation Filter
set (Position #3) (included) |
| MA867 |
|
(Discontinued) Opti-Quip Epi-Fluorescent Parts &
Lamps |
| MT-FL |
Modular Six Position
Fluorescent Illuminator Attachment includes 3 Fluorescence Filter Sets
listed above (included) |
| TC-LH |
US made Opti-Quip Nobska
Lamphouse for 100W Mercury, 75-100W Xenon and Mercury/Xenon hybrid lamps
(discontinued) |
| FL-PW |
US made Opti-Quip Model 1200
Adjustable Power supply for Lamphouse (discontinued) |
| TW-08 |
Replacement Trigger Wire for
Nobska Lamphouse (one included with Nobska Lamphouse) |
| BA-005 |
Replacement Mercury Lamp HBO
100W/2 |
| BA-013 |
Replacement Xenon Lamp XBO
75W/2 |
| BA-014A |
Replacement Xenon Lamp XBO
100W OFR |
Misc.
Parts & Accessories |
| MA918R |
Ceramic Coated Flat top
Stage with right-handed drop down coaxial controls. |
| MA918L |
Ceramic Coated Flat top
Stage with left-handed drop down coaxial controls. |
| MA676 |
|
| MA598 |
Replacement Finger Assembly
for MA918R & MA918L |
| MA958 |
Photo/Video attachment with
80/20 beamsplitter, fits MA957 only. |
| MA915 |
|
| MA809/10 |
Replacement 115V AC Power
cord with plug (USA) |
| MA809/20 |
Replacement 220V AC Power
cord with plug (Eurocord) |
| MA809/30 |
Replacement 240V AC Power
cord with plug (UK) |
| MA458/05 |
Centering Telescope for
phase contrast, O.D.= 30.0mm (optional) |
| MA906 |
Eyeshield (ea) for MA817 10x
eyepieces (pair included) |
| MA326 |
Replacement Lamp, 6V 30W
halogen |
| MA327 |
Replacement Fuse, 3A for
Halogen equipped models |
| MA929 |
Replacement Fuse, 0.5A for
LED equipped models |
| MA960 |
Dust Cover for MT6000 Series
Models (included) |
|
|
