digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
Biological Microscope BM311 Series



         Description

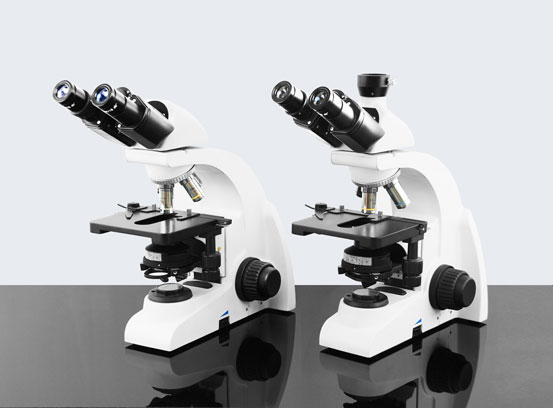

BM311110 Biological Microscope: 30º Binocular head, WF10X/18mm Eyepiece, Infinity achromatic objectives: 4X, 10X, 40X, 100X. 6V 20W Halogen light
BM311210 Biological Microscope: 30º Trinocular head, WF10X/18mm Eyepiece, 0.5X Video Coupler, Infinity achromatic objectives: 4X, 10X, 40X, 100X. 6V 20W Halogen light

         Product No.

Picture Preview

P/N

Name

Description

BM311110

Biological Microscope 30º Binocular head, WF10X/18mm Eyepiece, Infinity achromatic objectives: 4X, 10X, 40X, 100X. 6V 20W Halogen light

BM311210

Biological Microscope 30º Trinocular head, WF10X/18mm Eyepiece, 0.5X Video Coupler, Infinity achromatic objectives: 4X, 10X, 40X, 100X. 6V 20W Halogen light

BM321111

10X Eyepieces (Pair) High-eyepoint and plan 10X Eyepieces, 18mm field of view, the tube outside dia. 23.2mm. For BM311110/BM311210 Biological Microscope

BM321112

10X Eyepieces (Pair) High-eyepoint and plan 10X Eyepieces, 20mm field of view, the tube outside dia. 23.2mm. For BM311110/BM311210 Biological Microscope

BM321134

16X Eyepieces (Pair) Plan 16X Eyepieces, 14mm field of view, the tube outside dia. 23.2mm. For BM311110/BM311210 Biological Microscope

BM323211

4X Infinity Achromatic Objective 4X/0.13 ∞/-, WD12.31. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323212

10X Infinity Achromatic Objective 10X/0.30 ∞/0.17, WD6.75. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323214

40X Infinity Achromatic Objective 40X/0.70 ∞/0.17, WD0.76. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323216

100X Infinity Achromatic Objective 100X/1.25 ∞/0.17, WD0.12. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323221

4X Infinity E Plan Objective E Plan 4X/0.13 ∞/-, WD12.31. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323222

10X Infinity E Plan Objective E Plan 10X/0.30 ∞/0.17, WD6.75. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323224

40X Infinity E Plan Objective E Plan 40X/0.70 ∞/0.76, WD12.31. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323226

100X Infinity E Plan Objective E Plan 100X/1.25 ∞/0.17, WD0.12. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323231

4X Infinity Plan Objective Plan 4X/0.10 ∞/-, WD12.31. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323232

10X Infinity Plan Objective Plan 10X/0.25 ∞/0.17, WD5.03. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323233

20X Infinity Plan Objective Plan 20X/0.40 ∞/0.17, WD2.71. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323234

40X Infinity Plan Objective Plan 40X/0.65 ∞/0.17, WD0.72. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323235

60X Infinity Plan Objective Plan 60X/0.80 ∞/0.17, WD0.69. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323236

100X Infinity Plan Objective Plan 100X/1.25 ∞/0.17, WD0.17. For BM311110/BM311210/BM312110/BM312210 Biological Microscope

BM323611

0.5X Video Coupler For BM311210/BM312210 Biological Microscope

BM323612

1X Video Coupler For BM311210/BM312210 Biological Microscope

BM323613

0.25X Video Coupler For BM311210/BM312210 Biological Microscope
         Application

BM311110 / BM311210 Biological microscope. Excellent optic performance and stable ergonomic mechanical construction, high efficient, high quality and cost-effective biological microscope.

         Specifications
Optical System: Infinity independent achromatic optical design
Observation Tube: 30° inclined, interpupillary distance 52-74mm, 360°rotatable. Trinocular light is split 20/80 by a high quality coated prism
Eyepieces: 10X, high-eyepoint, field of view Φ18mm
Nosepieces: Inward, four positions
Focusing System: Working distance 60mm, coarse: 14mm per-rotation, fine: 0.1mm per rotation, minimum reading: 1 micron
Mechanical Stage: 142mmx135mm platform with X-Y travel of 76mmx52mm, with scale mark and specimen-slide clip
Illumination: Built-in 6V/20W halogen bulb, optional with field diaphragm provides Koehler type illumination
Electric: CE approved of electrical parts
Condensers: Abbe condenser NA 1.25 with iris diaphragm
