digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems

HDAF800 Auto Focus HD High Definition 1080p Digital Microscope 2x-250x with HDMI Output, USB Drive to Capture Image and Measurement Option



Please click here for 720p HDAF700 Model

  • HDAF800-US Auto Focus HD 1080p Digital Microscope SystemUniversal Stand, 15” Vertical Pole, Integrated LED Lighting and Control Panel. Optional 24 inch Monitor shown
  • HDAF800-TS Auto Focus HD 1080p Digital Microscope SystemTable Stand, Integrated LED Lighting and Control Panel. Optional 24 inch Monitor and Key Pad for Controls and Measurement shown
  • HDAF800-BS Auto Focus HD 1080p Digital Microscope SystemBlack Stand with 18” Height Adjustment, 16” Throat Depth, Integrated LED Lighting and Control Panel. Optional 24 inch Monitor shown

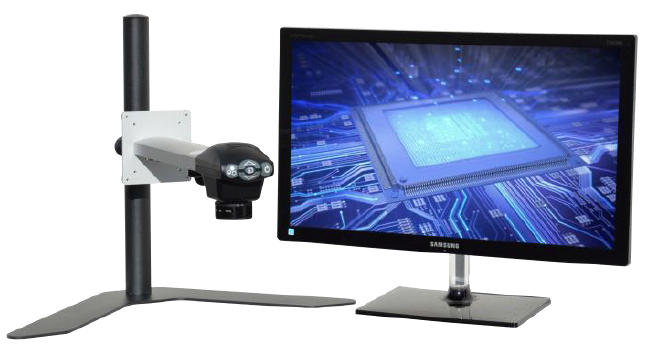

  • HDAF800-UV Auto Focus HD 1080p Digital Microscope SystemUniversal Stand with 25” Vertical Pole, VESA mount for Monitor, Integrated LED Lighting and Control Panel. Optional 24 inch Monitor shown

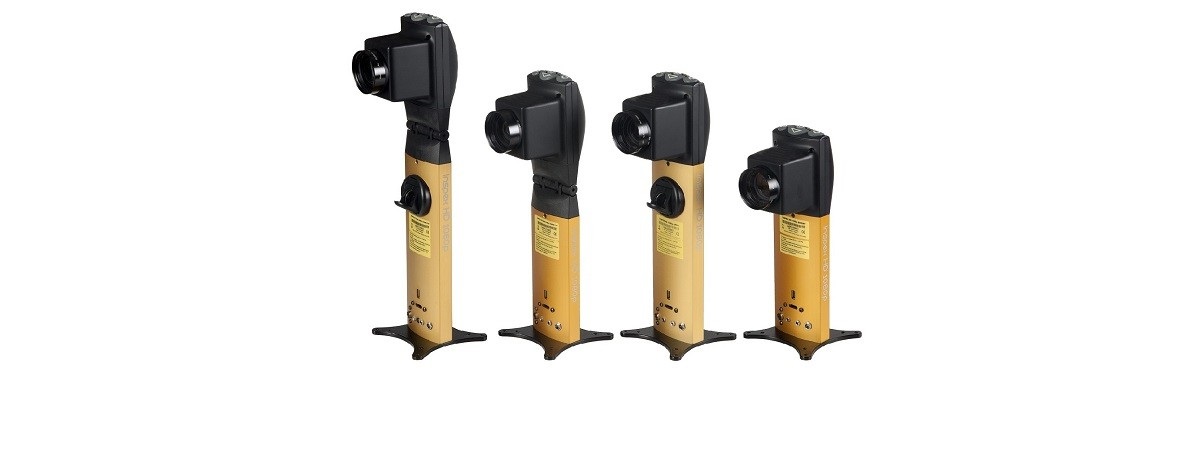

  • HDAF800A, HDAF800AS, HDAF800, HDAF800S (left to right) with VESA mount“A” Version has Articulating Head. “S” Short Version does NOT have Integrated LED Lighting
  • HDAF800A-BS Auto Focus HD 1080p Digital Microscope System Articulating Head for Angle Viewing, Basic Stand, Integrated LED Lighting and Control Panel. Optional 24 inch Monitor and Key Pad for Controls and Measurement shown
  • HDAF800-BL Auto Focus HD 1080p Digital Microscope SystemBack Lighting Stand, Integrated LED Lighting and Control Panel. Optional Key Pad for Controls and Measurement shown
  • HDAF800-TS Auto Focus HD 1080p Digital Microscope SystemArticulating Head for Angle Viewing, Table Stand, Integrated LED Lighting and Control Panels





The HDAF800 series offer high definition 1080p HD quality inspection with incredible HD Image quality and magnification along with high quality color reproduction, contrast, and resolution. USB Drive to save image. No computer needed.

High definition image quality and excellent resolution 1080p
Exceptional color rendition and contrast color control
Large field of view
Long working distance
USB Drive to save image
2x to 250x zoom (with optional lens)

HDAF800 Key Features

· Real time viewing on monitor for quality assurance and measurement functions
· High accuracy and detailed inspection
· Ergonomic design to improve operator experience and improve production efficiencies
· Convenient documentation and traceability function for quality control records
· USB Drive for picture taking 1920x1080. No computer needed. Optional video recorder

The HDAF800 is ideal for:

Production areas, R&D, Laboratory, Micro assembly, Electronics, Micro- mechanics, Automotive, Dental technology, Medical device, Forensics, Quality control tasks, Presentation, and training.

applications


HDAF800 with Universal Boom Stand

18" Height Back Stand with 16" Depth

Universal Stand with 25" Vertical Pole
and VESA Mount for Monitor

Table Clamp Stand for HDAF800 and Monitor

Tabletop Stand



1

Keypad Features:
· Camera & lighting functions & settings
· Adjust object viewing position using customizable on screen crosshairs
· Magnification, auto/manual focus & exposure
· High contrast mode for enhancing objects like IC’s
· Image freeze and capture of images to PC using DVI cable
· 3 memory programmable presets

1

Stand
· Suitable for HDAF800 and monitor freeing up bench space
· Flexible arm for in line work and comfortable screen viewing position

1

Data Capture Software
· Allows you to instantly capture a full HD frame
· Images can then be used for further processing or measurement analysis
· Images can be easily stored common formats such as bitmap, JPEG, TIFF

1

XY Table
· The XY Table is easy to use and allows user to easily maneuver an object
· Dimensions: 41cm x 30cm (16” x 12”)

1

Height Adjustable Table
· Adjust the height of an object to ensure optimal viewing & magnification of an object
· Dimensions: 6”x 6” and 8”x 8” options available

1

Foot Switch
· Used for adjusting magnification levels

1

Lenses available 3+, 4+, 5+, 10+
· Lenses (52mm) available in a range of sizes to adjust magnification levels

1

Oblique Tilting Table
· Allows user to view an object from an oblique angle

1

VESA Arm
· Includes camera and integrated lighting
· Can be mounted to any 75mm or 100mm VESA mount

1

Measurement Grid
· Measurement grid for XY measurement application

1

HD PAD
· HD Pad for portable live viewing, image capture and measurement.
· Stores up to 100 images in jpg format, transferrable via USB
· Measures in inches and mm



Camera Resolution

HD 1080p  (1920x1080)

Connections

HDMI,  USB  Drive  to  save  image.

Focus

Auto / Manual

Dimensions

Bench top stand:

41 cm x 24 cm x 35 cm

Weight

1.1 kg

Power Supply

100/240V, 50/60Hz

Power Consumption

8 Watts

Recommended monitor*

16:9 | HDMI

22” - 24” monitor

Zoom range *

2x  to  250x  (with  optional  lens)

HDAF800 Lens Data

Lens

Working

Distance

Field of View

(diagonal)

Video Magnification on

24" HD Monitor

2+



500mm

610 mm — 12 mm



1x   —   50x



19.7“

24” — 0.48”







4+



250mm

305mm — 7mm



2x   —   85x



9.8”

12” — 0.28”







5+



200mm

244mm — 5.8mm



2.5x   —   105x



7.9”

9.6” — 0.23”







10+



100 mm

135mm — 2.4mm



4.5x   —   250x



3.9”

5.3” — 0.096”









MTX Measurement Software for PC (click to learn more)
