QVxx-AV Series DCC Microscope (Computer Control XY Precision Measurement)





Description

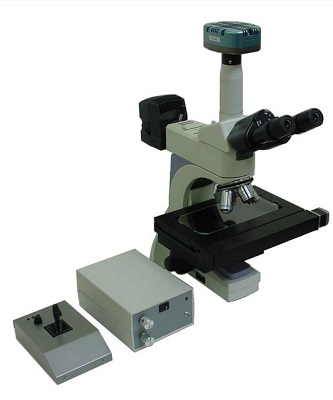

QVxx-AV series is a microscope based measurement and inspection system. The system integrates a microscope with a precision XY stage, high performance motion controller, computer and software.
It greatly improves the speed of inspection and accuracy of measurement.


Highlights

High Resolution Digital Imaging
Precision XY Measurement
Infinity plan achromatic objectives
WF eyepieces
Sub-pixel edge detection
Turnkey Metrology Solution

Details

Digital readout (DRO) within the software
Clear sharp images with high resolution digital camera and high quality optics
Multiple objectives and eyepieces
Annotation and image capture for failure analysis or part history documentation
Data analysis directly to Excel
Overlay features for comparison
Part profile export
Desktop PC & WLCD flat panel monitor with Windows OS
Operational Touchscreen operation
User friendly metrology software


System Features

Travel

MS1: (X) 6 x (Y) 3 inch
MS2, MS3: (X) 6 x (Y) 4 inch

Drive

Manual Focus
Motorized XY

Encoder

Rotary, 0.635 um resolution

Camera

3.3M color digital camera

Objectives

MS1 Objective: 4X, 10X, 20X, 40X
MS2 Objective: 4X, 10X, 20X, 40X
MS3 Objective: 2X, 5X, 10X, 20X, 50X

Lighting

Manual coaxial & sub-stage

Software

Metrology Software or Inspection Software

Computer

Desktop PC

Operating System

Windows 7/8 Profrssional

Monitor

22" LCD

Warranty

1 year


Options

Encoder

Linear, 0.1 / 0.01 um resolution

Lighting

Programmable computer control

Computer

All-in-one/Portable

Monitor

23" Touchscreen

Camera

CCD or CMOS digital camera


Software Features

Metrology Software
Advanced edge detection for sub-pixel accuracy measurement
CAD import and export
Supports inch, millimeter, mil and micron units, Cartesian and Polar coordinates
Datum reference frame for alignment and tolerance
User-defined measurement calculations
Up to 32000 points per feature
Save, open, run and edit part program capability
Group editing
Real-time linked to other applications, such as spreadsheets, SPC and best-fit
Flexible data format for post processing
Image archiving and retrieval
Image annotation and comparison
International language support

Inspection Software
Programming stop and scan propositions
Pause time setting
Defect log in
Crosshaor & templates
Easy dimensional measurement
Supports inch, millimeter, mil and micron units, Cartesian and Polar coordinates
Save, open, run and edit part program capability
Image archiving and retrieval
Image annotation and comparison
International language support


Microscope Models


M1 Microscope

M2 Microscope

M3 Microscope

Trinocular head, WF10X/18 Eyepiece,
Infinity plan achromatic objectives: 4X/10X/20X/40X;
Quadruple nosepiece,
Illumination: Kohler illumination

Trinocular head, Extra wide field eyepiece: WF10X/22mm,
Infinity plan achromatic objectives: 4X/10X/20X/40X,
Quadruple nosepiece;
Illumination: 6V20W halogen bulb with adjustable brightness

Trinocular head, Extra wide field eyepiece: EW10X/22;
Video Coupler: 0.5X;
Infinity plan achromatic objectives: 2X/5X/10X/20X/50X;
Quintuple Nosepiece; with Polarizer, LED lighting



Plan Achromatic
Objective Lens

Working Distance (mm)

4X

25.4

10X

11.0

20X

6.0

40X

3.7

80X (Optional)

0.2

Plan Achromatic
Objective Lens

Working Distance (mm)

4X

25.4

10X

11.0

20X

6.0

40X

3.7

80X (Optional)

0.2

M Plan Apo L

Working Distance (mm)

2X

34.6

5X

45

10X

34

20X

30.8

50X

20.5

100X (Optional)

12.5

Request Info
