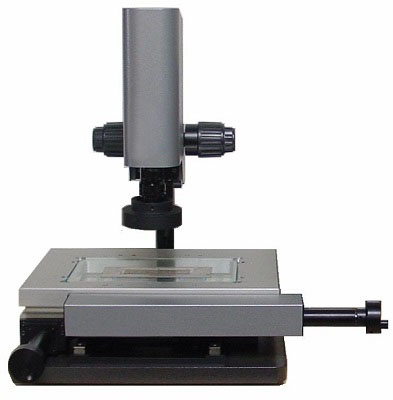

EZxxMV-XY Manual Measuring System





Description

EZxxMV-XY is an easy-to-use, powerful video based 2-axis manual measuring system. 3M digital camera, the ultra-large image without compression and conversion greatly improves the sub-pixel accuracy and throughput. The software selectable resolution balances the speed and resolution.

The basic system uses a dimensional measurement and imaging software. The software is very easy-to-use and provides functions for broad applications. Such as measurement, inspection, comparison, annotation, image capture and documentation. Optional an upgrade software is designed for video manual measuring system with edge detection and part programming.

It provides full video CMM measuring capability and is easy-to-learn. The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.


Highlights

Clear Image
Most Cost Effective
Turnkey Metrology Solution

Details

Digital readout (DRO) within the software
Clear sharp images with high resolution digital camera and quality optics
34-200X magnification with detent zoom optics for viewing and measuring small features
Annotation and image capture for failure analysis or part history documentation
Data analysis directly to Excel
Overlay features for comparison
All-in-one computer with 22 inch WLCD flat panel monitor with Windows 7
Touch screen operation
User friendly metrology software


System Features

Travel

200mm x 100mm

Drive

Manual

Encoder

0.0005 mm on XY

Camera

3M color digital camera

Optics

0.7x-4.5x detent zoom lens

Lighting

Ring & sub-stage adj. LED

Software

Metrology Software

Computer

Desktop PC with Winsows OS

Monitor

22" LCD

Operating System

Windows 7

Warranty

1 year


Options

Base

Granite

Encoder

0.0001 mm resolution

Z Encoder

0.001 - 0.0001 mm

Computer

All-In-One/Portable

Monitor

22" Touchscreen

Camera

CCD/Digital Camera
